Possible other choices:

- if no cover needed VP-2800-CL22-2H / 4H

- if more feeders needed VP-28000HP-CL64-2H / 4H

- if higher precision and HD cameras needed VP-2800HP-CL64-4R

VP-2500HP-CL32 PNP machine using 32 CL feeder and 2x20 line push feeder plus up to 4 vibration feeder units!


SMALLSMT, Yamaha CL Feeder, Bestückungsautomat, Pick and Place machine

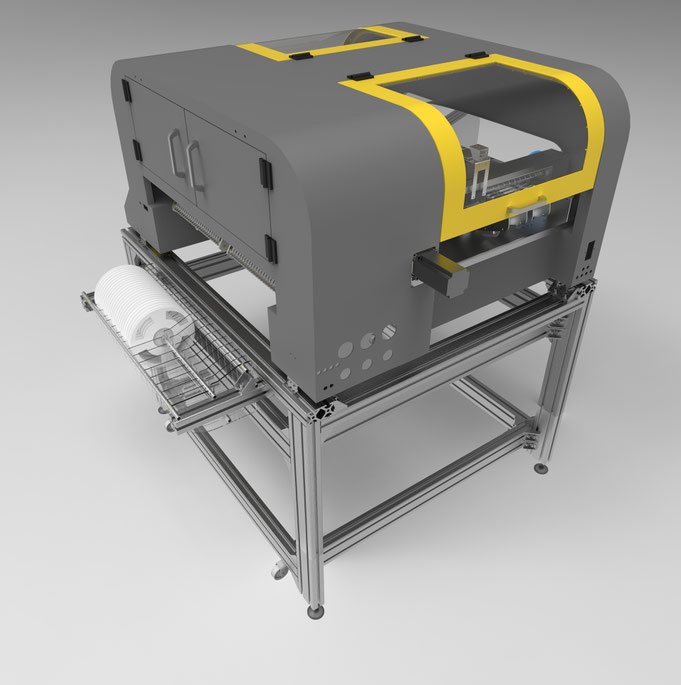

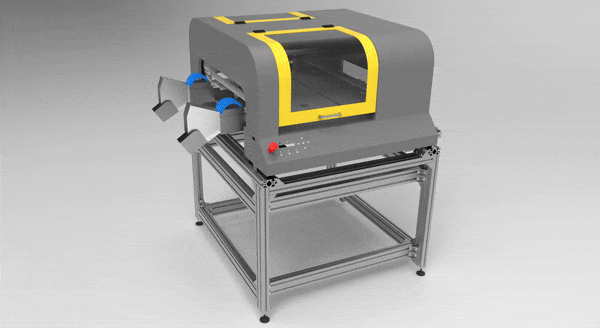

SMALLSMT VP-2500HP-CL32 PNP Machine including Table Kit
  • HIWIN linear guides on all axis, no head shaking like competitor machines using small belts and simple round rods
  • HIWIN ball screw spindles on X and Y axis
  • AC servos on X (200W) and Y (400W) axis from LEETRO
  • position feedback loop control using optical encoders attached to servo motors
  • new winder mechanics on our integrated push feeders
  • East side 2x separate push feeder including up to 2x20x 8mm lines included!
  • new 3 side feeder possible
  • new bottom camera position changed both cameras reachable for both heads
  • new mounting options inside the working area
  • new small tray feeder integrated on north and south side of PCB holder frame!
  • West side CL feeder support for 32x 8mm slots
  • Optional North side 4x vibration feeder support up to 14 SO-8 tubes now possible!

Working Area: 300x500mm

Travel Area: 460 x 660mm

Machine Dimensions: 960x1132x520mm

Placement Range: 0201 to 30x30mm

Placement Speed: 2000 to 4500cph

Nozzle Changer: 6 slot included!



West Feeder: 32x 8mm CL Feeder

East Feeder: 2x 20x 8mm  push Feeder total 40 Push feeder

NorthVibration Feeder: up to 4x Optional Feeder modules holding 7x SO-8 tubes



Totally 32+20+20+7+7+7+7 = 100 automatic feeders plus strip feeder and tray feeder totally!




Download
DATASHEET_VP2500HPCL32.pdf
Adobe Acrobat Document 673.8 KB
Download

DRAWINGS


Download
VP-2500HP-CL32 Outline Drawing
VP-2500HP-CL32_OUTLINE.pdf
Adobe Acrobat Document 337.1 KB
Download
Download
VP2500HP-CL32 space requirements
Table_VP2500HPCL32_topview.pdf
Adobe Acrobat Document 1.3 MB
Download
Download
VP-2500HP-CL32 TOP VIEW
VP-2500HP-CL32_TOPVIEW.pdf
Adobe Acrobat Document 434.0 KB
Download

SMALLSMT Yamaha CL Feeder automatic pick and place SMT

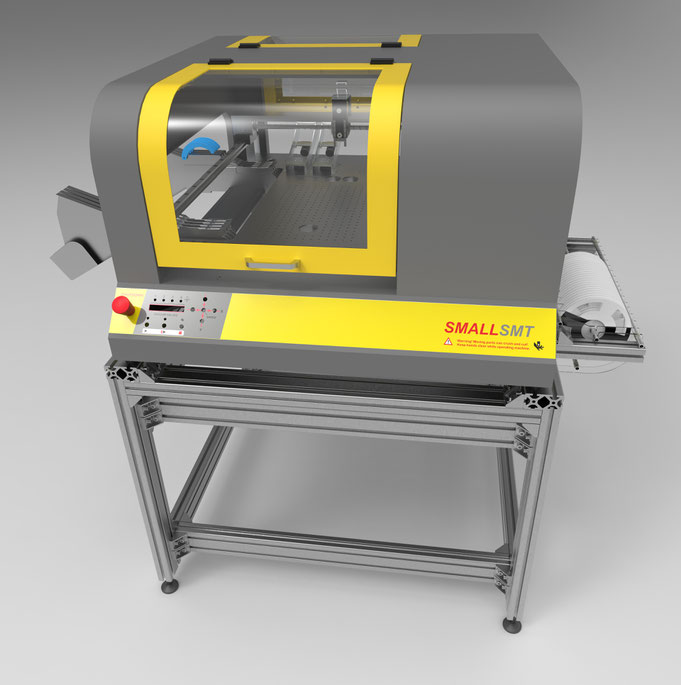

VP-2500HP-CL32 High end Pick & Place machine

Push Feeder


VP-2500HP-CL32 2x push feeder bank on East side
VP-2500HP-CL32 2x push feeder bank on East side

CL Feeder bank


2500HP-CL32 32x slot CL Feeder on West side
2500HP-CL32 32x slot CL Feeder on West side

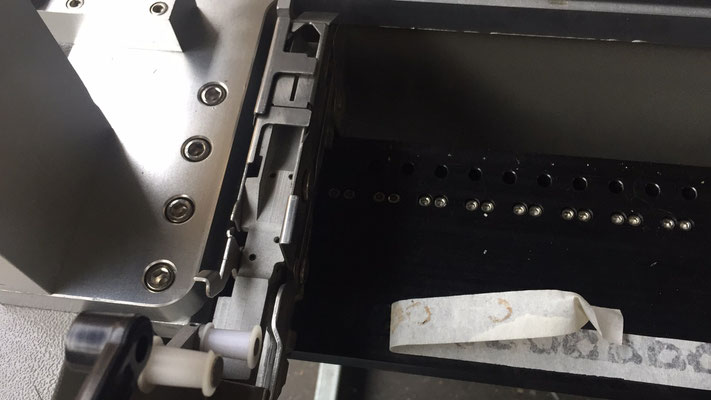

New Feeder Bank layout 2019 machines upgrade


It allows to add up to 4x 16mm wide CL feeder without blocking other slots!

For 12 and 16mm feeder you need only 2 slots instead of 3.



Vibration feeder


2500HP-CL32 up to 4x Vibration feeder on North side
2500HP-CL32 up to 4x Vibration feeder on North side

Nozzle changer


2500HP-CL32 6 slot nozzle changer integrated
2500HP-CL32 6 slot nozzle changer integrated

Big Tray

2500HP-CL32 Big tray installed
2500HP-CL32 Big tray installed

Strip feeder

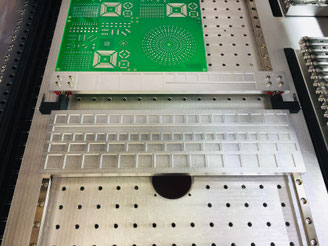

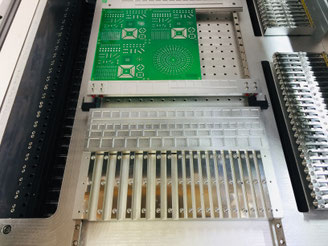

2500HP-CL32 Strip feeder + Big tray installed
2500HP-CL32 Strip feeder + Big tray installed

Cover removed


SMALLSMT Bestückungsmaschine Bestückungsautomat

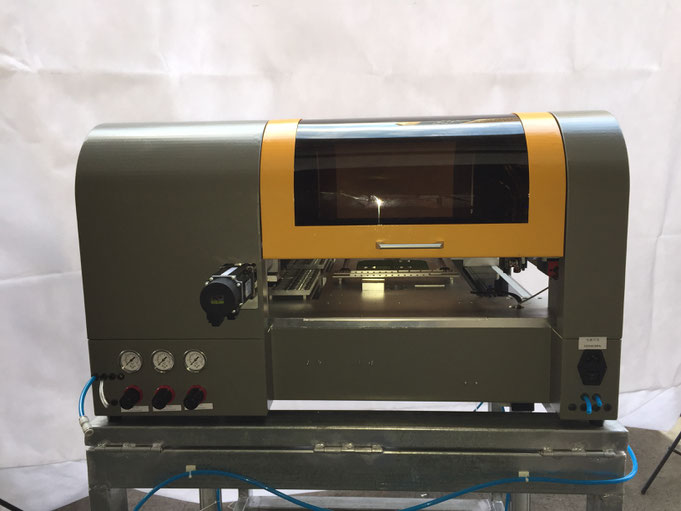

VP-2500HP-CL32 first build pictures without cover

A pick and place machine need feeder lines to supply the components for the placement process.

Our machines have up to 32 CL feeder and up to 40 push feeders on the machine table.

The feeder stock is Yamaha CL feeder compatible!

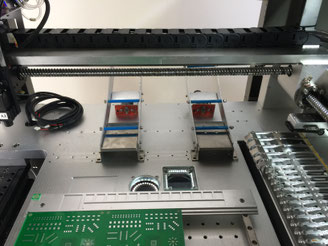

We use new bottom cameras now to improve the vision system quality.

Both bottom cameras are now usable for both heads.

The PCB holder on north side has small tray feeder now too.

desktop pick and place machine LED mounter Yamaha CL feeder

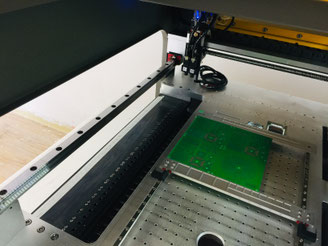

VP-2500HP-CL32 Pushfeeder bay
SMALLSMT automatic PNP machine pick and place Bestückungsautomat SMT CL Feeder
VP-2500HP-CL32 Push feeder bay
nozzle changer automatic pick and place desktop machine
VP-2500HP-CL32 CL Feeder Bay
SMALLSMT PNP machine pick and place Bestückungsautomat SMT CL Feeder
VP-2500HP-CL32 side view
SMALLSMT, Vibrationfeeder, PNP machine, Bestückungsautomat

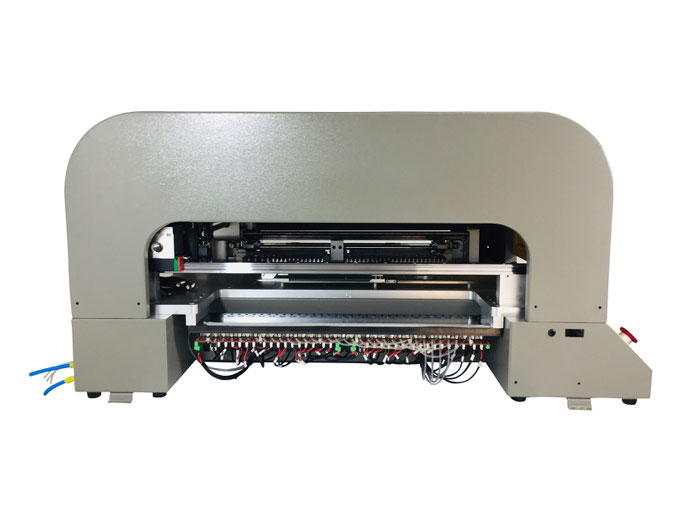

VP-2500HP-CL32 Back side view up to 4x vibration feeder
SMALLSMT PNP machine pick and place Bestückungsautomat SMT CL Feeder
VP-2500HP-CL32 Back side view
VP-2500HP-CL32 Top View Vibration feeder option on North side
VP-2500HP-CL32 Top View Vibration feeder option on North side
DISPENSER INFORMATION
2500HP-CL32 dispenser option on head 2
2500HP-CL32 dispenser option on head 2
Vision Placer VP-2500HP-CL32

Vision Placer VP-2500HP-CL32

VP-2500HP-CL32 without feeder cassettes!

32x Yamaha CL Feeder support. (8mm width)

up to 40x 8mm push feeder East included 2x20

Nozzle changer 6 slot included!

12.595,00 €

Final price excl. shipping costs

Free shipping to the following countries: Show more Show less

  • 185 kg
  • Available
  • Ships within 3-5 weeks1

We offer additional software PNP-Creator to improve project editing workflow and data storage plus reporting system.

Dot-Maker is used to create dot patterns based on GERBER data for paste coverage and glue dispensing. The final coordinate file get imported in V2 software to execute.



SMALLSMT PNP-Creator software full license includi
440,00 €
V2 Dot Maker Software
350,00 €
CN030, CP45 Nozzle
35,00 €
CN065, CP45 Nozzle
35,00 €
CN140, CP45 Nozzle
37,00 €
CN220, CP45 Nozzle
38,00 €
CN400, CP45 Nozzle
41,00 €
Original Samsung CN030, CP45 Nozzle high precision
125,00 €
Original Samsung CN040, CP45 Nozzle high precision
125,00 €

We offer discount if you order more feeders:

>= 10 pcs 3%,

>= 25 pcs 5%,

>= 100pcs 10%

CL Feeder 12mm
119,00 €
CL Feeder 16mm
119,00 €
CL Feeder 24mm
311,00 €
CL Feeder 32mm
439,00 €
CL Feeder 8mm 2mm pitch 0201 parts
98,00 €
CL Feeder 8mm 2mm pitch 0402 parts
85,00 €
CL Feeder 8mm 4mm pitch
85,00 €
FC120 CL Feeder Cart
From 790,00 €
FC160 CL Feeder Cart
From 1.010,00 €
VP-2500HP-CL32 Table Kit North feeder cart
1.380,00 €
VP-2500DP cut strip feeder block
145,00 €
Vibration feeder option
385,00 €
VP-2500D Tray feeder element
245,00 €
