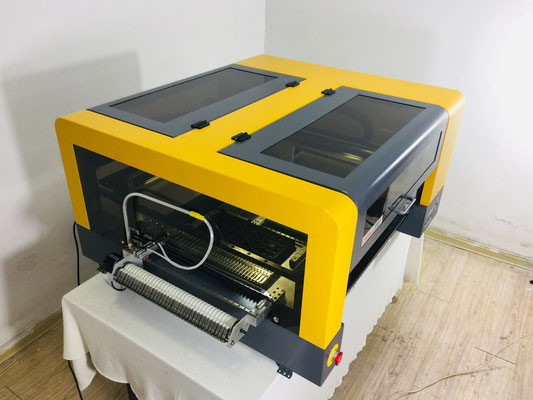

Our new PREMIUM LINE pnp machines


COMPARISION between the models


VP-2800HP-CL62-2H has 2 heads.
+ flexible nozzle usage because of 6 slots nozzle changer
+ dispenser head possible
+ optimized nozzle usage in 2 heads can change to same nozzle in both heads

+ size and weight is office friendly!

+ optional dipping station

+ 32mm Z axis travel range

+ modular construction easy to access servicable components

+ intelligent CL feeder bays using serial connection and air pressure supply only    valves and tubings outside machine!


- less cph because of 2 heads
- part alignment per head step by step

VP-2800HP-CL64-4H has 4 heads in 1 row.

You can use a mix of 4 nozzles.
+ little precision improvement because no nozzle changes needed
+ speed improvement because of 4 heads
+ compact head design need small overhead

+ size and weight is office friendly!
+ optional 19 slot nozzle changer available

+ dispenser head possible

+ optional dipping station

+ 32mm Z axis travel range

+ modular construction easy to access servicable components

+ intelligent CL feeder bays using serial connection and air pressure supply only    valves and tubings outside machine!



- part alignment per head step by step no fly by mode like 4R

- analog camera system



Bestückungsautomat PNP machine pick & place pick and place machine
VP-2800HP-CL64-4H

QUAD HEAD VERSION VP-2800HP-CL64-4H

  • 4 heads
  • 64x 8mm CL Feeder slots in 2 bays
  • Optional up to 4 vibration feeder modules
  • Up to 600 x 450mm working area
  • Optional Jedec Tray holder on both sides plus 350x300mm PCB holder
  • 2x Bottom cameras plus 1x Top camera
  • Bottom camera 1 align up to 12x12mm parts
  • Bottom camera 2 align up to 30x30mm parts
  • 1000W + 400W LEETRO AC Servo motors
  • 3x HIWIN linear guide lines on Y axis
  • High precision HIWIN ball screw spindles
Download
DATASHEET_VP2800HPCL64-4H.pdf
Adobe Acrobat Document 503.7 KB
Download
SMALLSMT Z-Axis-Sensor
SMALLSMT Z-Axis-Sensor

New Z-Axis sensor tip included in all 4 head machines.


Head mechanics

VP-2800HP-CL64-4H pnp head
VP-2800HP-CL64-4H pnp head

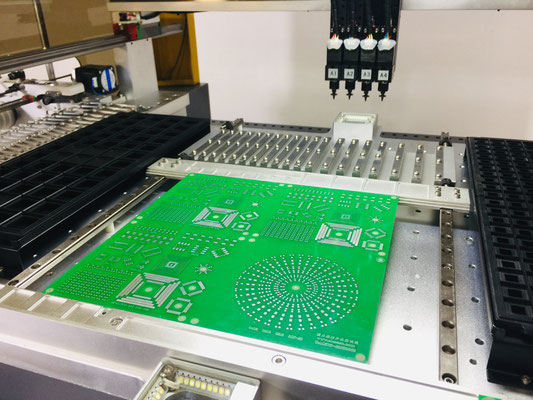

Working area

VP-2800HP-Cl64-4H Tray and Strip holder
VP-2800HP-Cl64-4H Tray and Strip holder

2020 machine changed head layout to 4 nozzles in a row.

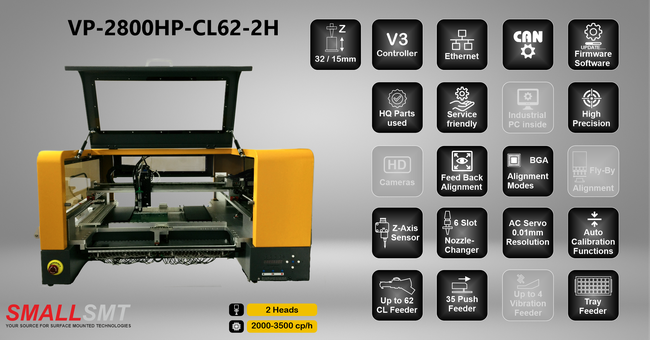

SMALLSMT PNP machine 2020 version 62CL Feeder, 2 heads, AC servos, spindle drive
VP-2800HP-CL62-2H

DOUBLE HEAD VERSION VP-2800HP-CL62-2H

  • 2 heads
  • 6 slot nozzle changer
  • 62x 8mm CL Feeder slots in 2 bays
  • Optional paste / glue dispenser module
  • Optional up to 4 vibration feeder modules
  • Up to 600 x 450mm working area
  • Jedec Tray holder on both sides plus 350x300mm PCB holder
  • 2x Bottom cameras plus 1x Top camera
  • Bottom camera 1 align up to 12x12mm parts
  • Bottom camera 2 align up to 30x30mm parts
  • 1000W + 400W LEETRO AC Servo motors
  • 3x HIWIN linear guide lines on Y axis
  • High precision HIWIN ball screw spindles
Download
DATASHEET_VP2800HPCL62-2H.pdf
Adobe Acrobat Document 503.0 KB
Download

DRAWINGS


Download
Machine outline drawing
VP2800HPCL64TOPVIEW.pdf
Adobe Acrobat Document 681.1 KB
Download
Download
Machine space requirements
Table_VP2800HPCL64_space_requirements.pd
Adobe Acrobat Document 2.5 MB
Download

Feeder Bank layout 2019 machines upgrade


It allows to add up to 4x 16mm wide CL feeder without blocking other slots!

For 12 and 16mm feeder you need only 2 slots instead of 3.



VP-2800HP-CL64-4H new nozzle changer option
VP-2800HP-CL64-4H new nozzle changer option
VP-2800HP-CL64-4H new nozzle changer working area layout
VP-2800HP-CL64-4H new nozzle changer working area layout

CL Feeder layouts

8/24/8mm
24mm removed
24mm on outer side
24mm removed
8/12/8mm
12m removed
8/12/12/8mm
12mm removed

Feeder layout example

VP-2800HP-CL62-2H

VP-2800HP-CL62-2H

  • 2 heads
  • 6 slot nozzle changer
  • 62x 8mm CL Feeder slots in 2 bays
  • 35x 8mm push feeder on West side included
  • Optional paste / glue dispenser module
  • Optional up to 4 vibration feeder modules
  • Up to 600 x 450mm working area
  • Jedec Tray holder on both sides plus 350x300mm PCB holder
  • 2x Bottom cameras plus 1x Top camera
  • Bottom camera 1 align up to 12x12mm parts
  • Bottom camera 2 align up to 30x30mm parts
  • 1000W + 400W LEETRO AC Servo motors
  • 3x HIWIN linear guide lines on Y axis
  • High precision HIWIN ball screw spindles
2 head high precision VisionPlacer machine

$16,445.00

Final price excl. shipping costs

Free shipping to the following countries: Show more Show less

  • 185 kg
  • Available
  • Ships within 3-5 weeks1
VP-2800HP-CL64-4H

VP-2800HP-CL64-4H

  • 4 heads
  • Optional 19 slot nozzle changer
  • Optional dispenser head
  • 64x 8mm CL Feeder slots in 2 bays
  • 35x 8mm push feeder on West side included
  • Optional up to 4 vibration feeder modules
  • Up to 600 x 450mm working area
  • Jedec Tray holder on both sides plus 350x300mm PCB holder
  • 2x Bottom cameras plus 1x Top camera
  • Bottom camera 1 align up to 12x12mm parts
  • Bottom camera 2 align up to 30x30mm parts
  • 1000W + 400W LEETRO AC Servo motors
  • 3x HIWIN linear guide lines on Y axis
  • High precision HIWIN ball screw spindles
4 head high precision VisionPlacer machine
$0.00

$17,545.00

Final price excl. shipping costs

Free shipping to the following countries: Show more Show less

  • 186 kg
  • Available
  • Ships within 3-5 weeks1

Dispenser option now possible for 2H and 4H machines!


DISPENSER INFORMATION

We offer additional software PNP-Creator to improve project editing workflow and data storage plus reporting system.

Dot-Maker is used to create dot patterns based on GERBER data for paste coverage and glue dispensing. The final coordinate file get imported in V2 software to execute.



SMALLSMT PNP-Creator software full license includi
$440.00
V2 Dot Maker Software
$350.00
CN030, CP45 Nozzle
$35.00
CN065, CP45 Nozzle
$35.00
CN140, CP45 Nozzle
$37.00
CN220, CP45 Nozzle
$38.00
CN400, CP45 Nozzle
$41.00
Original Samsung CN030, CP45 Nozzle high precision
$125.00
Original Samsung CN040, CP45 Nozzle high precision
$125.00

We offer discount if you order more feeders:

>= 10 pcs 3%,

>= 25 pcs 5%,

>= 100pcs 10%

CL Feeder 12mm
$119.00
CL Feeder 16mm
$119.00
CL Feeder 24mm
$311.00
CL Feeder 32mm
$439.00
CL Feeder 8mm 2mm pitch 0201 parts
$98.00
CL Feeder 8mm 2mm pitch 0402 parts
$85.00
CL Feeder 8mm 4mm pitch
$85.00
FC120 CL Feeder Cart
From $790.00
FC160 CL Feeder Cart
From $1,010.00
VP-2500DP cut strip feeder block
$145.00

Cut strip feeder block using 9x 8mm, 7x 12mm, 2x 16mm feeder lines (standard)

Can get customized too!

SMALLSMT Bestückungsautomat Arbeitstisch
VP-2800HP-CL64 Workingtable Kit
VP-2800HP-CL64 Table Kit West feeder cart
$1,430.00

Customer videos


Video provided from our valued customer Alchitry designing cool projects!

www.alchitry.com

GALLERY


VP-2800HP-CL64-4H
VP-2800HP-CL64-4H
VP-2800HP-CL64-4H
VP-2800HP-CL64-4H
VP-2800HP-CL64-4H
VP-2800HP-CL64-4H
VP-2800HP-CL64-4H
VP-2800HP-CL64-4H
VP-2800HP-CL64-4H
VP-2800HP-CL64-4H
VP-2800HP-CL64-4H
VP-2800HP-CL64-4H
VP-2800HP-CL64-4H
VP-2800HP-CL64-4H
VP-2800HP-CL64-4H
VP-2800HP-CL64-4H
VP-2800HP-CL64-4H
VP-2800HP-CL64-4H
VP-2800HP-CL64-4H
