VP-2800HP-CL22 PNP machine using 22 CL feeder and 35x8mm line push feeder plus up to 2 vibration feeder units! 2 and 4 heads


SMALLSMT, Yamaha CL Feeder, Bestückungsautomat, Pick and Place machine

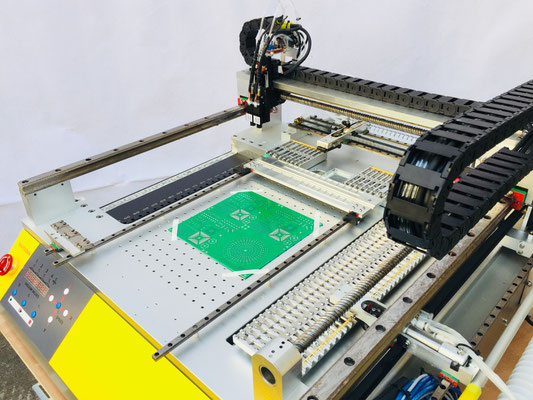

SMALLSMT VP-2800HP-CL22-4H PNP Machine

Total now 35 + 16 Push feeder + 22 CL feeder slots + Vibration feeder= 80 feeder

  • new linear guides on all axis, no head shaking like competitor machines using small belts and simple round rods
  • new winder mechanics on our integrated push feeders
  • East side  push feeder including up to 35x 8mm lines included!
  • new bottom camera position changed both cameras reachable for both heads
  • new mounting options inside the working area
  • new servo motors and ball screw spindle drive used including closed loop driver system for X and Y axis
  • new small tray feeder integrated on north and south side of PCB holder frame!
  • West side CL feeder support for22x 8mm slots
  • Optional North side 2x vibration feeder support up to 14 SO-8 tubes now possible! (only possible if no north side push feeders installed!)
Bestückungsautomat Pick and Place Machine

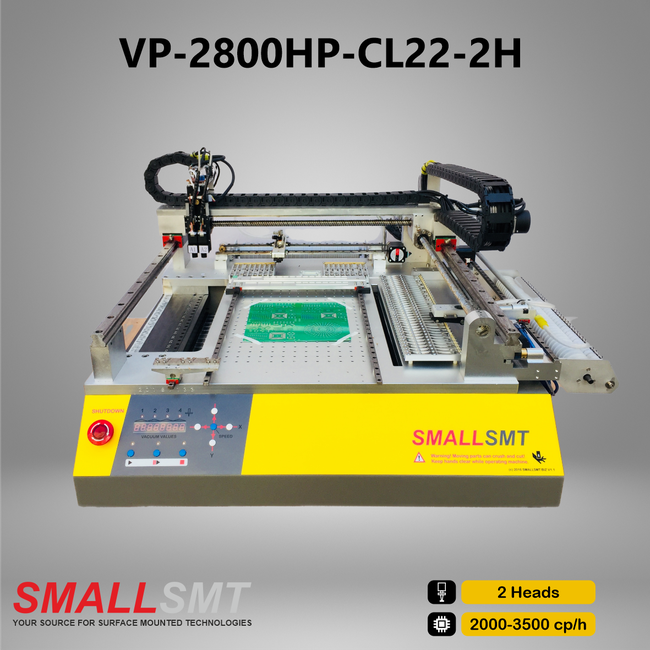

VP-2800HP-CL22-2H North push feeder option

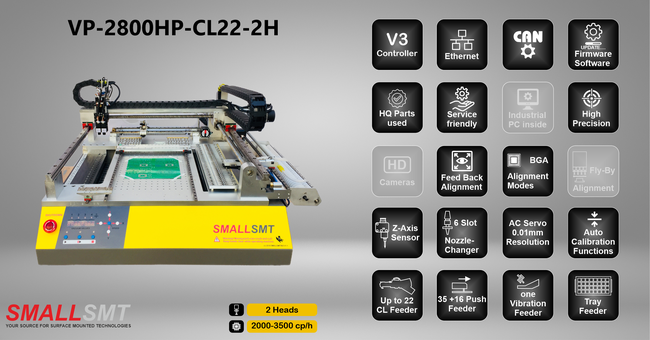

VP-2800HP-CL22-2H
VP-2800HP-CL22-2H

This new machine is based on the same stable VP-2800HP machine design plus CL feeder.



Working Area: 310x420mm

Travel Area: 415 x 520mm

Machine Dimensions: 1000x1020x400mm

Placement Range: 0201 to 30x30mm

Placement Speed: 2000 to 4500cph

Nozzle Changer: 6 slot included for 2 head machine, 4 head machine not possible



West Feeder: 22x 8mm CL Feeder slots

East Feeder: 35x 8mm  push Feeder (customization possible)

North Feeder: Optional 2x 8x 8mm push feeder

North Vibration Feeder: up to 2x Optional Feeder modules holding 7x SO-8 tubes

South Vibration Feeder: 1x Optional vibration feeder holding 7x SO-8 tubes



Totally 22+35+7+16 = 80 automatic feeders plus strip feeder and tray feeder totally!



Download
Datasheet for VP-2800HP-CL22-2H
DATASHEET_VP2800HPCL22-2H.pdf
Adobe Acrobat Document 244.4 KB
Download
Download
Datasheet for VP-2800HP-CL22-4H (4Head)
DATASHEET_VP2800HPCL22-4H.pdf
Adobe Acrobat Document 244.4 KB
Download

DRAWINGS


SMALLSMT Yamaha CL Feeder automatic pick and place SMT
VP-2800HP-CL22 High end Pick & Place machine Push feeder
SMALLSMT Bestückungsmaschine Bestückungsautomat
VP-2800HP-CL22-4H CL feeder and quad pnp head
SMALLSMT Bestückungsmaschine Bestückungsautomat
VP-2800HP-CL22-4H CL feeder compact design
SMALLSMT Bestückungsmaschine Bestückungsautomat
VP-2800HP-Cl22-4H flexible feeder setup
VP-2800HP-CL22-2H Push feeder side
VP-2800HP-CL22-2H Push feeder side

A pick and place machine need feeder lines to supply the components for the placement process.

Our machines have up to 22 CL feeder and up to 35 push feeders on the machine table.

The feeder stock is Yamaha CL feeder compatible!

We use new bottom cameras now to improve the vision system quality.

Both bottom cameras are now usable for both heads.

The PCB holder on north side has small tray feeder now too.

DOUBLE HEAD VERSION:


Vision Placer VP-2800HP-CL22-2H

Vision Placer VP-2800HP-CL22-2H

VP-2800HP-CL22 without CL feeder cassettes!

22x Yamaha CL Feeder support. (8mm width),

up to 35x 8mm push feeder East included,

Nozzle changer 6 slot included,

2 Head machine,

optional Dispenser head,

North push feeder included 2x blocks 8x8mm

10.989,00 €

Final price excl. shipping costs

Free shipping to the following countries: Show more Show less

  • 92 kg
  • Available
  • Ships within 3-5 weeks1

4 HEAD VERSION:

Vision Placer VP-2800HP-CL22-4H

Vision Placer VP-2800HP-CL22-4H

VP-2800HP-CL22 without CL feeder cassettes!

22x Yamaha CL Feeder support. (8mm width)

up to 35x 8mm push feeder East included

North push feeder included 2x blocks 8x8mm

4 Head machine

11.539,00 €

Final price excl. shipping costs

Free shipping to the following countries: Show more Show less

  • 92 kg
  • Available
  • Ships within 3-5 weeks1
DISPENSER INFORMATION

We offer additional software PNP-Creator to improve project editing workflow and data storage plus reporting system.

Dot-Maker is used to create dot patterns based on GERBER data for paste coverage and glue dispensing. The final coordinate file get imported in V2 software to execute.



SMALLSMT PNP-Creator software full license includi
440,00 €
V2 Dot Maker Software
350,00 €
CN030, CP45 Nozzle
35,00 €
CN065, CP45 Nozzle
35,00 €
CN140, CP45 Nozzle
37,00 €
CN220, CP45 Nozzle
38,00 €
CN400, CP45 Nozzle
41,00 €
Original Samsung CN030, CP45 Nozzle high precision
125,00 €
Original Samsung CN040, CP45 Nozzle high precision
125,00 €
Yamaha CL Feeder

We offer discount if you order more feeders:

>= 10 pcs 3%,

>= 25 pcs 5%,

>= 100pcs 10%

CL Feeder 12mm
119,00 €
CL Feeder 16mm
119,00 €
CL Feeder 24mm
311,00 €
CL Feeder 32mm
439,00 €
CL Feeder 8mm 2mm pitch 0201 parts
98,00 €
CL Feeder 8mm 2mm pitch 0402 parts
85,00 €
CL Feeder 8mm 4mm pitch
85,00 €
FC120 CL Feeder Cart
From 790,00 €
FC160 CL Feeder Cart
From 1.010,00 €
VP-2500DP cut strip feeder block
145,00 €
Vibration feeder option
385,00 €
VP-2500D Tray feeder element
245,00 €
