VP-2800HP-CL64-4R PREMIUM LINE R PNP machine

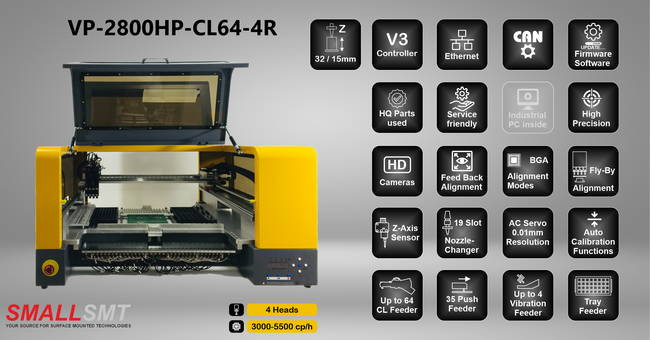

Bestückungsautomat PNP machine pick & place pick and place machine
VP-2800HP-CL64-4R showing standard version including push feeder

VP-2800HP-CL64-4R has 4 heads in a row . You can use a mix of 4 / 19 nozzles.
+ little precision improvement because no nozzle changes if using 4 heads only
+ speed improvement because of 4 heads
+ high speed HD USB3 camera aligns 4 heads during fly by

+ size and weight is office friendly!

+ Z-axis sensor tip included

+ stainless steel nozzle seats

+ optional 19 slot nozzle changer increase speed can use 4 same nozzle at a time

+ optional dispenser head for glue and paste

+ optional vibration feeder

+ optional dipping station

+ 32mm Z axis travel range

+ modular construction easy to access servicable components

+ intelligent CL feeder bays using serial connection and air pressure supply only    valves and tubings outside machine!

+ stainless steel nozzle seats

+ Z-Axis sensor tip




Standard machine showing optional nozzle changer

SMALLSMT Pick & Place machine Bestückungsautomat Prototypen CL Feeder
VP-2800HP-CL64-4R including nozzle changer
19 slot nozzle changer option
19 slot nozzle changer option
Jedec tray holder left side

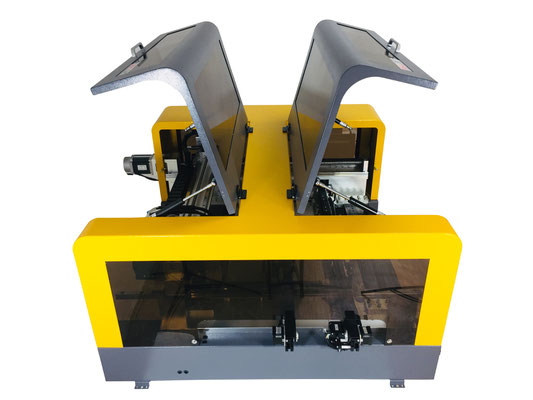

gull wing doors on front and backside
big working area
closed door operation
integrated push feeder on west side
4 head in a row
SMALLSMT Z-Axis-Sensor
SMALLSMT Z-Axis-Sensor

New Z-Axis sensor tip included in all 4 head machines.

4 heads in a row (4R)

VP-2800HP-CL64-4R new 4 heads in a row [optional conveyor!]
VP-2800HP-CL64-4R new 4 heads in a row [optional conveyor!]

Full HD top camera USB 2.0

VP-2800HP-CL64-4R HD top camera
VP-2800HP-CL64-4R HD top camera

High Speed USB3.0 bottom camera

VP-2800HP-CL64-4R HS bottom camera 1
VP-2800HP-CL64-4R HS bottom camera 1

Full HD bottom Camera 2 USB 2.0

VP-2800HP-CL64-4R HS bottom camera 2
VP-2800HP-CL64-4R HS bottom camera 2

HD Camera examples 0201 resistor / TQFP / SOT23-5 / Connector

0201 Resistor
0201 Resistor zoomed
TQFP under differnt light
TQFP under differnt light
SOT23-5
Special connector

JEDEC Tray holder

VP-2800HP-CL64-4R Jedec Tray holder
VP-2800HP-CL64-4R Jedec Tray holder
optional strip feeder
optional strip feeder
VP-2800HP-CL64-4R CL feeder bank
VP-2800HP-CL64-4R CL feeder bank

Working area

VP-2800HP-Cl64-4R standard working area
VP-2800HP-Cl64-4R standard working area
VP-2800HP-CL64-4R up to 3 vibation feeder units
VP-2800HP-CL64-4R up to 3 vibation feeder units
VP-2800HP-CL64-4R CL-feeder controller
VP-2800HP-CL64-4R CL-feeder controller

New 19 Slot Nozzle Changer Option

VP-2800HP-CL64-4R new nozzle changer
VP-2800HP-CL64-4R new nozzle changer
VP-2800HP-CL6X dsispenser unit
VP-2800HP-CL6X dsispenser unit

VP-2800HP-CL64-4R new working area layout showing 19 slot nozzle changer option
VP-2800HP-CL64-4R new working area layout showing 19 slot nozzle changer option

Datasheet

Bestückungsautomat PNP machine
VP-2800HP-CL64-4R product parameters
VP-2800HP-CL64-4R camera specification
VP-2800HP-CL64-4R camera specification
Download
DATASHEET_VP2800HPCL64-4R.pdf
Adobe Acrobat Document 1.3 MB
Download

DRAWINGS

Download
Machine outline drawing
VP2800HPCL64TOPVIEW.pdf
Adobe Acrobat Document 681.1 KB
Download

CL Feeder Bank layout!

It allows to add up to 4x 12/16/24mm wide CL feeder without blocking other slots!

For 12 / 16mm feeder you need only 2 slots instead of 3 if they mounted side by side.


CL Feeder installation examples

8/24/8mm
24mm removed
24mm on outer side
24mm removed
8/12/8mm
12m removed
8/12/12/8mm
12mm removed

Feeder layout example

VP-2800HP-CL64-4R

VP-2800HP-CL64-4R

  • 4 heads
  • Optional 19 slot nozzle changer
  • Optional dispenser head
  • Optional dipping station
  • 64x 8mm CL Feeder slots in 2 bays
  • 35x 8mm Push feeder on website included
  • Optional up to 3 vibration feeder modules
  • Up to 600 x 450mm working area
  • 2x Jedec Tray holder on both sides plus 350x300mm PCB holder
  • Z axis sensor included
  • 2x HD Bottom cameras plus 1x HD Top camera
  • Bottom camera 1 align up to 30x30mm parts high speed USB3
  • Bottom camera 2 align up to 40x40mm parts
  • 1000W + 400W AC Servo motors
  • 3x HIWIN linear guide lines on Y axis
  • High precision HIWIN ball screw spindles
2 head high precision VisionPlacer machine
0,00 €

19.745,00 €

Final price excl. shipping costs

Free shipping to the following countries: Show more Show less

  • 185 kg
  • Available
  • Ships within 3-5 weeks1

Dispenser option now possible for 4 head machines too!

VP-2800HP-CL6X dispenser head option
VP-2800HP-CL6X dispenser head option
DISPENSER INFORMATION

We offer additional software PNP-Creator to improve project editing workflow and data storage plus reporting system.

Dot-Maker is used to create dot patterns based on GERBER data for paste coverage and glue dispensing. The final coordinate file get imported in V2 software to execute.



SMALLSMT PNP-Creator software full license includi
440,00 €
V2 Dot Maker Software
350,00 €
CN030, CP45 Nozzle
35,00 €
CN065, CP45 Nozzle
35,00 €
CN140, CP45 Nozzle
37,00 €
CN220, CP45 Nozzle
38,00 €
CN400, CP45 Nozzle
41,00 €
Original Samsung CN030, CP45 Nozzle high precision
125,00 €
Original Samsung CN040, CP45 Nozzle high precision
125,00 €

We offer discount if you order more feeders:

>= 10 pcs 3%,

>= 25 pcs 5%,

>= 100pcs 10%

CL Feeder 12mm
119,00 €
CL Feeder 16mm
119,00 €
CL Feeder 24mm
311,00 €
CL Feeder 32mm
439,00 €
CL Feeder 8mm 2mm pitch 0201 parts
98,00 €
CL Feeder 8mm 2mm pitch 0402 parts
85,00 €
CL Feeder 8mm 4mm pitch
85,00 €
FC120 CL Feeder Cart
From 790,00 €
FC160 CL Feeder Cart
From 1.010,00 €
VP-2500DP cut strip feeder block
145,00 €
VP-2800HP-CLX Tray feeder element
255,00 €
VP-2800HP-CLX Nozzle changer 19 slot
962,00 €

Cut strip feeder block using 9x 8mm, 7x 12mm, 2x 16mm feeder lines (standard)

Can get customized too!

SMALLSMT Bestückungsautomat Arbeitstisch
VP-2800HP-CL64 Workingtable Kit
VP-2800HP-CL64 Table Kit West feeder cart
1.530,00 €
PNP machine Videos

VP-2800HP-CL64-4R demonstrating fly by alignment

Youtube content is not displayed due to your cookie settings. Click on the functional YouTube cookies in the cookie banner to agree to load and display content from YouTube.

You can watch the VP-2800HP-CL6X videos, the machines have a similar performance.

VP-2800HP-CL64-4R new camera test placing TQFP208 fine pitch chip. #smallsmt pic.twitter.com/AJdV4tBSAV

— SMALLSMT (@SMALLSMT) April 25, 2019

VP-2800HP-CL64-4R machine 3 zone conveyor option testing! #smallsmt #SMTconnect pic.twitter.com/EPpRO2kywV

— SMALLSMT (@SMALLSMT) April 25, 2019

Comparison video shows the placement without optical alignment and in 2 different alignment modes

Youtube content is not displayed due to your cookie settings. Click on the functional YouTube cookies in the cookie banner to agree to load and display content from YouTube.

no alignment

alignment enabled


New 19 slot nozzle changer released working video

Youtube content is not displayed due to your cookie settings. Click on the functional YouTube cookies in the cookie banner to agree to load and display content from YouTube.

VP-2800HP-CL64-4R position accuracies below 0.01mm repeatable! #smallsmt pic.twitter.com/8YRM8rUxF3

— SMALLSMT (@SMALLSMT) May 30, 2020
