Dispenser Head option and dispensing controller for our machines


The option includes the syringe holder and integrated controller!

We use a spring for flexible Z axis position.

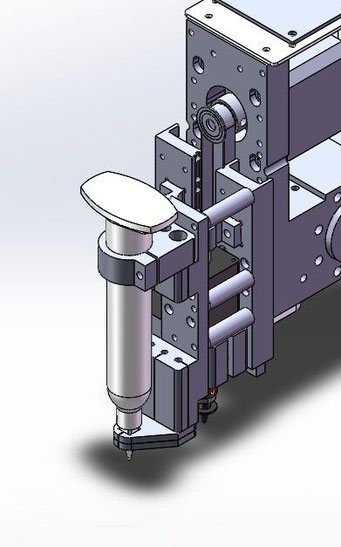

The new syringe holder gets mounted in front of placement head 2.



All DP and HP machines from now are able to receive this option except 4 head machines.



V2 software does the time controller and switch output to enable external or internal dispenser controller.

The function can be enabled by selecting "glue dispenser" mode in machine type menu.

The machine move to every X/Y position in the PNP list and opens the dispenser valve for XXXms.

If syringe holder mounted the second pnp head is blocked and can't be used for PNP!







4 head machine dispenser option
VP-2800HP-CL64-4R Dispenser option
VP-2800HP-CL62-2H Dispenser option
VP-2800HP-CL62-2H Dispenser option
Dispenser option 4 head CL64 machines
Dispenser option 4 head CL64 machines

Glue dispensing job result

This is a glue dispenser job result.

We used 0.5mm needle and our own embedded dispensing controller.







V2 Dot Maker Software


Optional tool for coordinate files creation from simple GERBER file input.

Dot Maker Software Information
V2 Dot Maker Software
$295.00

VP-2500HP-CL32 Dispenser head working video


This is our dispenser kit
This is our dispenser kit

Glue / Dispenser head installation video


Dispenser upgrade option for 2 head machines

Dispenser upgrade option for 2 head machines

Dispenser head upgrade option including internal dispensing controller and pressure regulator.

Syringe and nozzles included. ( 1pcs each 0.3, 0.5, 0.7, 1.0mm nozzle included!)

Dispenser head upgrade option

$450.00

Final price excl. shipping costs

Free shipping to the following countries: Show more Show less

  • 0.4 kg
  • Available
  • Ships within 3-7 days1

We offer syringe and nozzle tips


1x Dispenser nozzle 0.3mm diameter

1x Dispenser nozzle 0.3mm diameter

Dispenser nozzle 0.3mm diameter one piece

Dispenser nozzle 0.3mm diameter

$20.00

Final price excl. shipping costs

Free shipping to the following countries: Show more Show less

  • 0.01 kg
  • Available
  • Ships within 3-7 days1
1x Dispenser nozzle 0.4mm diameter

1x Dispenser nozzle 0.4mm diameter

Dispenser nozzle 0.4mm diameter one piece

Dispenser nozzle 0.3mm diameter

$20.00

Final price excl. shipping costs

Free shipping to the following countries: Show more Show less

  • 0.01 kg
  • Available
  • Ships within 3-7 days1
1x Dispenser nozzle 0.5mm diameter

1x Dispenser nozzle 0.5mm diameter

Dispenser nozzle 0.5mm diameter one piece

Dispenser nozzle 0.3mm diameter

$20.00

Final price excl. shipping costs

Free shipping to the following countries: Show more Show less

  • 0.01 kg
  • Available
  • Ships within 3-7 days1
1x Dispenser nozzle 0.6mm diameter

1x Dispenser nozzle 0.6mm diameter

Dispenser nozzle 0.6mm diameter one piece

Dispenser nozzle 0.3mm diameter

$20.00

Final price excl. shipping costs

Free shipping to the following countries: Show more Show less

  • 0.01 kg
  • Available
  • Ships within 3-7 days1
1x Dispenser nozzle 0.7mm diameter

1x Dispenser nozzle 0.7mm diameter

Dispenser nozzle 0.7mm diameter one piece

Dispenser nozzle 0.3mm diameter

$20.00

Final price excl. shipping costs

Free shipping to the following countries: Show more Show less

  • 0.01 kg
  • Available
  • Ships within 3-7 days1
1x Dispenser nozzle 1.0 mm diameter

1x Dispenser nozzle 1.0 mm diameter

Dispenser nozzle 1.0 mm diameter one piece

Dispenser nozzle 0.3mm diameter

$20.00

Final price excl. shipping costs

Free shipping to the following countries: Show more Show less

  • 0.01 kg
  • Available
  • Ships within 3-7 days1
10x Syringe 10cc

10x Syringe 10cc

10 pcs syringe 10cc

Dispenser nozzle 0.3mm diameter

$35.00

Final price excl. shipping costs

Free shipping to the following countries: Show more Show less

  • 0.5 kg
  • Available
  • Ships within 3-7 days1
