- if no cover needed VP-2800-CL22-2H / 4H

- if more feeders needed VP-28000HP-CL64-2H / 4H

- if higher precision and HD cameras needed VP-2800HP-CL64-4R

SMALLSMT LYNX pnp machine using 32 CL feeder and 2x20 line push feeder plus up to 4 vibration feeder units!

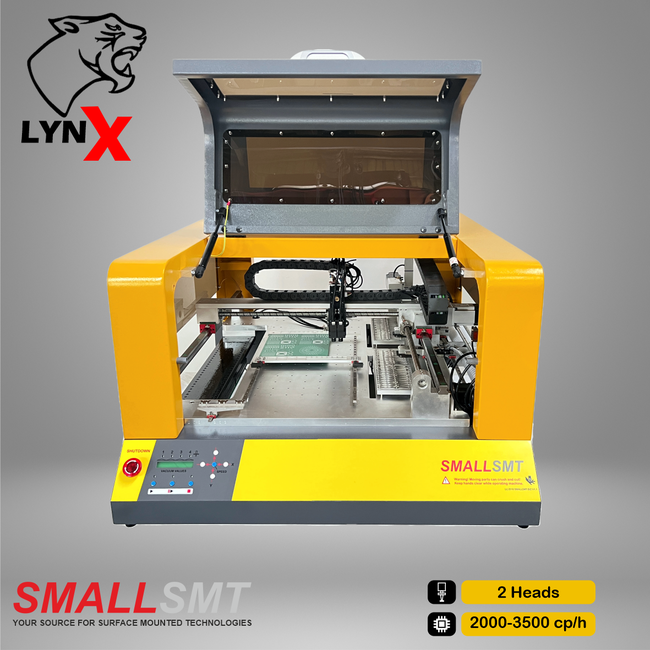

SMALLSMT LYNX Pick and place machine

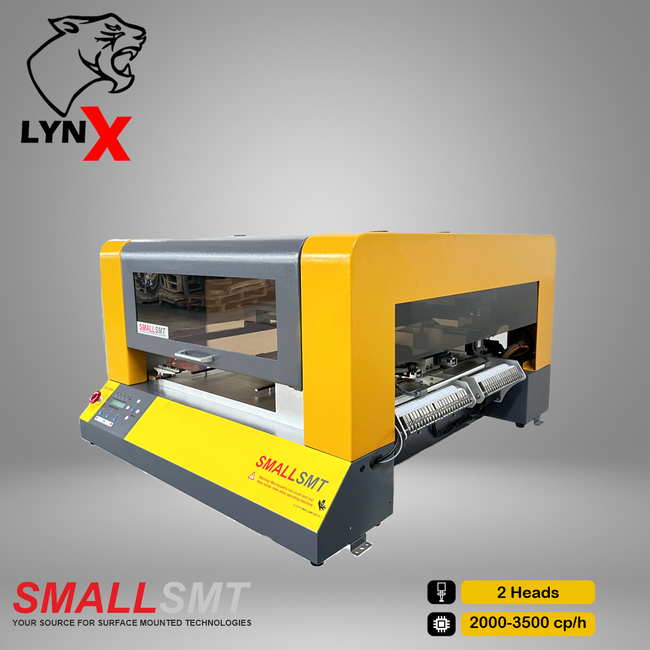

SMALLSMT LYNX Pick and place machine
  • HIWIN linear guides on all axis, no head shaking like competitor machines using small belts and simple round rods
  • HIWIN ball screw spindles on X and Y axis
  • AC servos on X (200W) and Y (400W) axis from LEETRO
  • position feedback loop control using optical encoders attached to servo motors
  • new winder mechanics on our integrated push feeders
  • East side 2x separate push feeder including up to 2x20x 8mm lines included!
  • new 3 side feeder possible
  • new bottom camera position changed both cameras reachable for both heads
  • new mounting options inside the working area
  • new small tray feeder integrated on north and south side of PCB holder frame!
  • West side CL feeder support for 32x 8mm slots
  • Optional North side 4x vibration feeder support up to 14 SO-8 tubes now possible!

Working Area: 300x500mm

Travel Area: 460 x 660mm

Machine Dimensions: 960x1132x520mm

Placement Range: 0201 to 30x30mm

Placement Speed: 2000 to 4500cph

Nozzle Changer: 6 slot included!



West Feeder: 32x 8mm CL Feeder

East Feeder: 2x 20x 8mm  push Feeder total 40 Push feeder

NorthVibration Feeder: up to 4x Optional Feeder modules holding 7x SO-8 tubes



Totally 32+20+20+7+7+7+7 = 100 automatic feeders plus strip feeder and tray feeder totally!




Download
DATASHEET_LYNX.pdf
Adobe Acrobat Document 532.4 KB
Download

SMALLSMT Yamaha CL Feeder automatic pick and place SMT
SMALLSMT Lynx Pick & Place machine

Push Feeder


SMALLSMT LYNX 2x push feeder bank on East side
SMALLSMT LYNX 2x push feeder bank on East side

CL Feeder bank


SMALLSMT LYNX 32x slot CL Feeder on West side
SMALLSMT LYNX 32x slot CL Feeder on West side

Feeder Bank layout


It allows to add up to 4x 16mm wide CL feeder without blocking other slots!

For 12 and 16mm feeder you need only 2 slots instead of 3.



Vibration feeder


SMALLSMT LYNX up to 4x Vibration feeder on North side
SMALLSMT LYNX up to 4x Vibration feeder on North side

Nozzle changer


SMALLSMT LYNX 6 slot nozzle changer integrated
SMALLSMT LYNX 6 slot nozzle changer integrated

Big Tray

SMALLSMT LYNX Big tray installed
SMALLSMT LYNX Big tray installed

Strip feeder

SMALLSMT LYNX Strip feeder + Big tray installed
SMALLSMT LYNX Strip feeder + Big tray installed

A pick and place machine need feeder lines to supply the components for the placement process.

Our machines have up to 32 CL feeder and up to 40 push feeders on the machine table.

The feeder stock is Yamaha CL feeder compatible!

We use new bottom cameras now to improve the vision system quality.

Both bottom cameras are now usable for both heads.

The PCB holder on north side has small tray feeder now too.

SMALLSMT automatic PNP machine pick and place Bestückungsautomat SMT CL Feeder
SMALLSMT LYNX Push feeder bay
SMALLSMT PNP machine pick and place Bestückungsautomat SMT CL Feeder
SMALLSMT LYNX side view
DISPENSER INFORMATION
2500HP-CL32 dispenser option on head 2
2500HP-CL32 dispenser option on head 2
SMALLSMT LYNX

SMALLSMT LYNX

SMALLSMT LYNX without feeder cassettes!

32x Yamaha CL Feeder support. (8mm width)

up to 40x 8mm push feeder East included 2x20

Nozzle changer 6 slot included!

$9,999.00 2

$8,888.00

Final price excl. shipping costs

Free shipping to the following countries: Show more Show less

  • 145 kg
  • Available
  • Ships within 3-5 weeks1

We offer additional software PNP-Creator to improve project editing workflow and data storage plus reporting system.

Dot-Maker is used to create dot patterns based on GERBER data for paste coverage and glue dispensing. The final coordinate file get imported in V2 software to execute.



SMALLSMT PNP-Creator software full license includi
$440.00
V2 Dot Maker Software
$350.00
CN030, CP45 Nozzle
$35.00
CN065, CP45 Nozzle
$35.00
CN140, CP45 Nozzle
$37.00
CN220, CP45 Nozzle
$38.00
CN400, CP45 Nozzle
$41.00
Original Samsung / HANWEI CN030, CP45 Nozzle high
$124.50
Original Samsung / HANWEI CN040, CP45 Nozzle high
$124.50

We offer discount if you order more feeders:

>= 10 pcs 3%,

>= 25 pcs 5%,

>= 100pcs 10%

CL Feeder 12mm
$119.00
CL Feeder 16mm
$119.00
CL Feeder 24mm
$311.00
CL Feeder 32mm
$439.00
CL Feeder 8mm 2mm pitch 0201 parts
$98.00
CL Feeder 8mm 2mm pitch 0402 parts
$85.00
CL Feeder 8mm 4mm pitch
$85.00
FC120 CL Feeder Cart
$982.50
FC160 CL Feeder Cart
$1,162.00
LYNX Table Kit North feeder cart
$1,380.00
VP-2500DP cut strip feeder block
$145.00
Vibration feeder option
$385.00
VP-2500D Tray feeder element
$245.00

Pick and place machine videos

The videos show the proven predecessor model


Youtube content is not displayed due to your cookie settings. Click on the functional YouTube cookies in the cookie banner to agree to load and display content from YouTube.
Youtube content is not displayed due to your cookie settings. Click on the functional YouTube cookies in the cookie banner to agree to load and display content from YouTube.
Youtube content is not displayed due to your cookie settings. Click on the functional YouTube cookies in the cookie banner to agree to load and display content from YouTube.
Youtube content is not displayed due to your cookie settings. Click on the functional YouTube cookies in the cookie banner to agree to load and display content from YouTube.

Dangerous Prototypes

AVR Freaks

Element 14

EEVBLOG

IMDES


SMT Bestückungsmaschine

New PNP Machine SMALLSMT PANDA BASIC is shipping

Sat 11 Nov 2023
Read More 0 Comments

New Information Pages added!

Wed 12 Apr 2023
Read More

LED 0201 Placement Video released

Mon 10 Apr 2023
Read More

New Electrical CL Feeder Option released!

Sat 25 Mar 2023
Read More

All trademarks remain property of their respective holders, and are used only to directly describe the products being provided.  Their use in no way indicates any relationship between SMALLSMT and the holders of said trademarks.



Copyright © 2015 - 2023 SMALLSMT

Bestückungsautomat für Prototypen und Kleinserien


Wir bauen Bestückungsmaschinen für die zuverlässige SMT Bestückung von Leiterplatten, für Prototypen und Kleinserien. Abhängig von Ihren Ansprüchen bieten wir einfache Produkte bis zu den HP (High Precision) Bestückungsautomaten die über AC Servos und Kugelumlaufspindeln eine absolute Positionierung ermöglichen.


Pick and Place Machine for prototyping and smaller batches


We are manufacturer for Pick & Place machines used for professional SMT assembly of pcb for prototypes and small batches. Depending on your demands we offer simple pick and place machines up to our High Precision HP machines. For HP pnp machines we us AC servo motors and ball screw spindles to achieve closed loop positioning.


Máquina Pick and Place para prototipos y pequeñas producciones.


Somos fabricantes de máquinas Pick and Place usadas por profesionales para prototipos y pequeñas producciones. Dependiendo de sus demandas podemos ofrecer desde máquinas Pick and Place básicas hasta nuestras máquinas HP de alta precisión. Para nuestras HP pnp usamos servo motores de AC con husillo para conseguir un control de posición de lazo cerrado.


Machine Pick and Place pour le prototypage et les petits lots


Nous sommes fabricants de machines Pick & Place utilisées pour l'assemblage professionnel de circuits imprimés pour les prototypes et les petites séries. Selon vos besoins, nous proposons des machines Pick & Place simples jusqu'à nos machines HP de haute précision. Pour les machines HP pnp, nous utilisons des servomoteurs AC et des broches à vis à billes pour obtenir un positionnement en boucle fermée.
