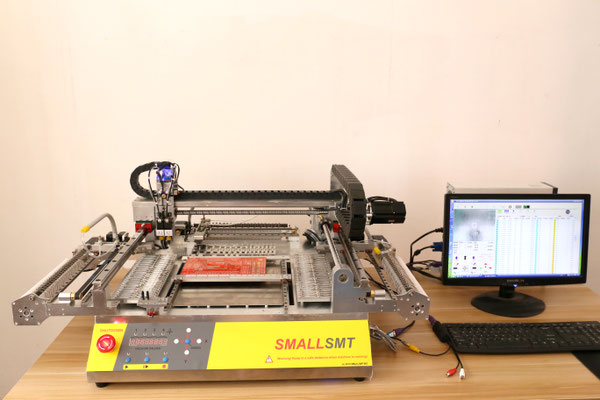

VP-2500HP High Precision PNP machine


VP-2500HP the high precision machine for prototype assembly.

All push feeders are included in the price and can be extended with dispensers and vibrating feeders for maximum flexibility!

  • linear guides on all axis, no head shaking like competitor machines using small belts and simple round rods
  • winder mechanics on our integrated push feeders
  • 3 side feeder possible having slots to move wasted tape under the machine
  • 2 bottom cameras one top camera for measurements and mark detection
  • AC servo motors for X and Y axis directly coupled to HIWIN ball screw spindles.
  • Closed loop position control using optical encoders inside the AC servos.
  • small tray feeder included on north and south side of PCB holder

DATASHEET


Download
DATASHEET_VP2500HP.pdf
Adobe Acrobat Document 205.3 KB
Download

DISPENSER INFORMATION

Nozzle Changer


VP-2500HP Nozzle Changer
VP-2500HP Nozzle Changer

6 slot nozzle changer included!

Feeder


VP-2500HP Push Feeder
VP-2500HP Push Feeder

West: 24x 8mm

North: 25x 8mm North

East: 24x 8mm optional!

West feeder has fixed configuration

North feeder slot width customizable

East feeder slot width customizable

All push feeders included!

Trays


VP-2500HP Big Tray
VP-2500HP Big Tray

Small trays on North and South side included!

Big tray included!


Motion system


VP-2500HP Leetro Servo
VP-2500HP Leetro Servo

AC servo motors on X and Y axis using optical encoders resolution 0,025mm.

Stepper motors for Z axis and A1 + A2.

Angle resolution 0,0278 degree 1/6400

Vision system


2x Bottom cameras using different magnification

1x Top camera for fiducial detection / measurements

1x USB Video digitzer included.



OpenCV based vision system.

Mechanics


VP-2500HP Ball Screw Drive
VP-2500HP Ball Screw Drive

Linear guides from HIWIN in X / Y / Z axis.

Linear guides on each push feeder side.

Working area: 300x 320mm NW and 250 x 320mm NWE

Software


English Windows software V2 included.

Software information

Strip feeder


VP-2500DP Strip feeder assembly including

9x 8mm, 7x 12mm, 2x 16mm feeder lines.



It's possible to do a customized part too!

VIDEO


Vision Placer VP-2500HP

Vision Placer VP-2500HP

This machine has 2 heads and up to 71 Feeders

New! X and Y axis have ball screw spindle linear guides and servo motors high precision machine!



VP-2500HP dual head 360 degrees continuous rotation, (gallery)

1x top and 2x bottom cameras have a different optical magnification,

nozzle changer included!



up to 49 x 8mm feeders plus build in tray option plus 24 possible east feeder lines,

WEST feeder 24 x 8mm lines,

NORTH feeder custom 13x 8mm + 4x 12mm + 4x 16mm as a sample configuration, or 25x 8mm,

EAST feeder 24 x 8mm lines,

the west feeder is standard North feeder optional,

Pneumatic push feeder design the head don't need to wait for pickup because of tape dragging is processed in advance.



250 x 320mm working area, Z axis travel height is 15mm maximum part height 12mm,

capable to mount 0201,0402,0603,0805,1206 and bigger, SOP, QFN, TQFP with minimum 0,35mm pitch,



machine steering keyboard for run / pause / stop and axis movement,



vacuum display for each placement head,

CP45 nozzles snap in holder,

3 nozzles included 2x CN065 + 1x CN220,



Placement speed above 3600pcs / hour!



Mains supply is 110V / 230V AC 50 / 60Hz 400W

X axis 200W Servo motor

Y axis 400W Servo motor



32 Bit ARM build in controller system connected to PC by USB interface.



Shipping is done by DHL Express Air freight!



VP-2500HP Servo drive + balls screw spindle on X and Y axis, dual head, top and bottom camera, max. 51 x 8mm feeders, build in tray option, 360 x 320mm working area
$9,499.00

$9,299.00

Final price excl. shipping costs

Free shipping to the following countries: Show more Show less

  • 85 kg
  • Available
  • Delivery in 4-6 weeks1
CN030, CP45 Nozzle
$35.00
CN065, CP45 Nozzle
$35.00
CN140, CP45 Nozzle
$37.00
CN220, CP45 Nozzle
$38.00
CN400, CP45 Nozzle
$41.00
Original Samsung CN030, CP45 Nozzle high precision
$125.00
Original Samsung CN040, CP45 Nozzle high precision
$125.00

Vibration feeder option
Vibration feeder including tube holder for all 2016 build V2 controller machines
$385.00
VP-2500DP cut strip feeder block
Cut strip feeder block fitting on VP-2500DP machines using 9x 8mm, 7x 12mm, 2x 16mm feeder lines
$145.00
