Vision Placer VP-2500DP precision belt pnp machine

28x 8mm feeder West side included!

20x 8mm feeder North side included!

28x 8mm feeder East side optional!

6slot nozzle changer included!

Small tray on north feeder side included!

Price:

VP-2500DP + West & North feeder + 6 slot nozzle changer for 6399USD

VP-2500DP + West & North feeder & East feeder + 6 slot nozzle changer for 6699USD



NEW! Dispenser head option for all VP-2XXX machines

Dispenser information


SMALLSMT VP-2500DP
VP-2500DP
Youtube content is not displayed due to your cookie settings. Click on the functional YouTube cookies in the cookie banner to agree to load and display content from YouTube.

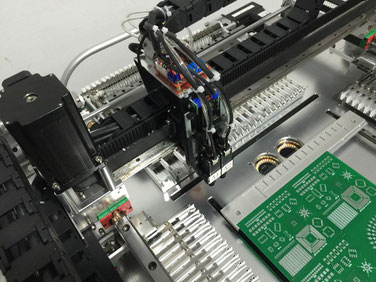

SMALLSMT VP-2500DP pick & place machine bottom camera view
VP-2500DP Bottom cameras

We use new bottom cameras now to improve the vision system quality. Both bottom cameras are now usable for both heads.

X and Y axis motors changed using stronger versions to rise the pick and place speed.

Y axis motor is now a closed loop servo stepper motor. The PCB holder on north side has small tray feeder now too.

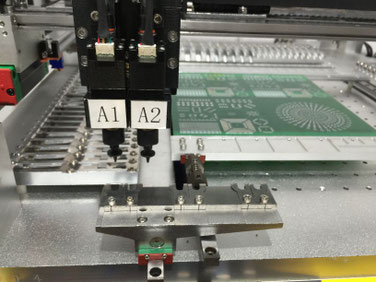

VP-2500DP pick place machine nozzle changer
VP-2500DP Nozzle changer

Our new DP machines got a nozzle changer to store 6 nozzles in the rack. Now it is possible to use 6 different nozzles in one placement job!


VP-2500DP Bestückungsmaschine mit Vibrationsfeeder
VP-2500DP Vibration feeder

This is the vibration feeder option for component tubes. It can held up to 7x SO-8 wide tubes.


VP-2500DP Strip feeder assembly including

9x 8mm, 7x 12mm, 2x 16mm feeder lines.



It's possible to do a customized part too!
