VP-2800HP-CL64-4RCV PREMIUM LINE R PNP machine


Bestückungsautomat PNP machine pick & place pick and place machine
VP-2800HP-CL64-4RCV showing optional dipping station

VP-2800HP-CL64-4RCV has 4 heads in a row . You can use a mix of 4 / 19 nozzles.
+ little precision improvement because no nozzle changes if using 4 heads only
+ speed improvement because of 4 heads
+ high speed HD USB3 camera aligns 4 heads during fly by

+ size and weight is office friendly!

+ including 3 zone conveyor including SMEMA interfaces on both sides

+ including Z-axis sensor tip

+ stainless steel nozzle seats

+ optional 19 slot nozzle changer increase speed can use 4 same nozzle at a time

+ optional dispenser head for glue and paste

+ optional dipping station unit

+ 40mm Z axis travel range

+ modular construction easy to access servicable components

+ intelligent CL feeder bays using serial connection and air pressure supply only    valves and tubings outside machine!

+ stainless steel nozzle seats





- no push feeder possible



Standard machine without optional nozzle changer and optional dipping station

SMALLSMT Pick & Place machine Bestückungsautomat Prototypen CL Feeder
VP-2800HP-CL64-4RCV showing optional dipping station
SMALLSMT Z-Axis-Sensor
SMALLSMT Z-Axis-Sensor

New Z-Axis sensor tip included in all 4 head machines.

3 Zone conveyor option including pneumatic lock

The 3 zone conveyor width can get adjusted by motor.

VP-2800HP-CL64-4RCV showing optional dipping station
VP-2800HP-CL64-4RCV showing optional dipping station
VP-2800HP-CL64-4RCV  conveyor input
VP-2800HP-CL64-4RCV conveyor input
VP2800HP-CL64-4RCV conveyor detail
VP2800HP-CL64-4RCV conveyor detail
VP-2800HP-CL64-4RCV zone conveyor with lock
VP-2800HP-CL64-4RCV zone conveyor with lock
VP-2800HP-CL64-4RCV  input parking zone
VP-2800HP-CL64-4RCV input parking zone
VP2800HP-CL64-4RCV conveyor detail
VP2800HP-CL64-4RCV conveyor detail

4 heads in a row (4R)

VP-2800HP-CL64-4RCV 4 heads in a row
VP-2800HP-CL64-4RCV 4 heads in a row

Full HD top camera USB 2.0

VP-2800HP-CL64-4RCV HD top camera
VP-2800HP-CL64-4RCV HD top camera

High Speed USB3.0 bottom camera

VP-2800HP-CL64-4R HS bottom camera 1
VP-2800HP-CL64-4R HS bottom camera 1

Full HD bottom Camera 2 USB 2.0

VP-2800HP-CL64-4R HS bottom camera 2
VP-2800HP-CL64-4R HS bottom camera 2

NEW optional Dipping Station for Flux added!

VP-2800HP-CL64-4RCV showing optional flux dipping station
VP-2800HP-CL64-4RCV showing optional flux dipping station

HD Camera examples 0201 resistor / TQFP / SOT23-5 / Connector

0201 Resistor
0201 Resistor zoomed
TQFP under differnt light
TQFP under differnt light
SOT23-5
Special connector

JEDEC Tray holder

VP-2800HP-CL64-4RCV Jedec Tray holder
VP-2800HP-CL64-4RCV Jedec Tray holder
VP-2800HP-CL64-4RCV Jedec Tray holder
VP-2800HP-CL64-4RCV Jedec Tray holder

Working area

VP-2800HP-Cl64-4RCV standard working area
VP-2800HP-Cl64-4RCV standard working area
VP-2800HP-CL64-4RCV Working area
VP-2800HP-CL64-4RCV Working area


Datasheet

Download
DATASHEET_VP2800HPCL64-4RCV_V102.pdf
Adobe Acrobat Document 642.9 KB
Download

DRAWINGS

Download
Machine outline drawing
VP2800HPCL64TOPVIEW.pdf
Adobe Acrobat Document 681.1 KB
Download

New CL Feeder Bank layout!

NEW! It allows to add up to 4x 16mm wide CL feeder without blocking other slots!

For 12 and 16mm feeder you need only 2 slots instead of 3 if they mounted side by side.


CL Feeder layouts

8/24/8mm
24mm removed
24mm on outer side
24mm removed
8/12/8mm
12m removed
8/12/12/8mm
12mm removed

Feeder layout example

VP-2800HP-CL64-4RCV

VP-2800HP-CL64-4RCV

  • 4 heads
  • 3-Zone PCB conveyor installed
  • Optional dispenser head
  • Optional dipping station
  • 64x 8mm CL Feeder slots in 2 bays
  • Up to 280 x 320mm working area if 3 zones used and 280 x 600mm if full area used
  • 2x Jedec Tray holder on back side
  • 2x HD Bottom cameras plus 1x HD Top camera
  • Bottom camera 1 align up to 30x30mm parts high speed USB3
  • Bottom camera 2 align up to 40x40mm parts
  • 1000W + 400W AC Servo motors
  • 3x HIWIN linear guide lines on Y axis, 2x HIWIN linear guide lines on X axis
  • High precision HIWIN ball screw spindles
  • Z-axis sensor tip included
2 head high precision VisionPlacer machine

21.495,00 €

Final price excl. shipping costs

Free shipping to the following countries: Show more Show less

  • 185 kg
  • Available
  • Ships within 3-5 weeks1

Dispenser option now possible for 4 head machines too!

VP-2800HP-CL6X dispenser head option
VP-2800HP-CL6X dispenser head option
DISPENSER INFORMATION

We offer additional software PNP-Creator to improve project editing workflow and data storage plus reporting system.

Dot-Maker is used to create dot patterns based on GERBER data for paste coverage and glue dispensing. The final coordinate file get imported in V2 software to execute.



SMALLSMT PNP-Creator software full license includi
440,00 €
V2 Dot Maker Software
350,00 €
CN030, CP45 Nozzle
35,00 €
CN065, CP45 Nozzle
35,00 €
CN140, CP45 Nozzle
37,00 €
CN220, CP45 Nozzle
38,00 €
CN400, CP45 Nozzle
41,00 €
Original Samsung CN030, CP45 Nozzle high precision
125,00 €
Original Samsung CN040, CP45 Nozzle high precision
125,00 €

We offer discount if you order more feeders:

>= 10 pcs 3%,

>= 25 pcs 5%,

>= 100pcs 10%

CL Feeder 12mm
119,00 €
CL Feeder 16mm
119,00 €
CL Feeder 24mm
311,00 €
CL Feeder 32mm
439,00 €
CL Feeder 8mm 2mm pitch 0201 parts
98,00 €
CL Feeder 8mm 2mm pitch 0402 parts
85,00 €
CL Feeder 8mm 4mm pitch
85,00 €
FC120 CL Feeder Cart
From 790,00 €
FC160 CL Feeder Cart
From 1.010,00 €
VP-2500DP cut strip feeder block
145,00 €
VP-2800HP-CLX Tray feeder element
255,00 €
VP-2800HP-CLX Nozzle changer 19 slot
962,00 €

Cut strip feeder block using 9x 8mm, 7x 12mm, 2x 16mm feeder lines (standard)

Can get customized too!

SMALLSMT Bestückungsautomat Arbeitstisch
VP-2800HP-CL64 Workingtable Kit
VP-2800HP-CL64-4RCV Table kit SMEMA compatible 950
1.630,00 €
PNP machine Videos

VP-2800HP-CL64-4R demonstrating fly by alignment

Youtube content is not displayed due to your cookie settings. Click on the functional YouTube cookies in the cookie banner to agree to load and display content from YouTube.

You can watch the VP-2800HP-CL6X videos, the machines have a similar performance.

VP-2800HP-CL64-4R new camera test placing TQFP208 fine pitch chip. #smallsmt pic.twitter.com/AJdV4tBSAV

— SMALLSMT (@SMALLSMT) April 25, 2019

VP-2800HP-CL64-4R machine 3 zone conveyor option testing! #smallsmt #SMTconnect pic.twitter.com/EPpRO2kywV

— SMALLSMT (@SMALLSMT) April 25, 2019

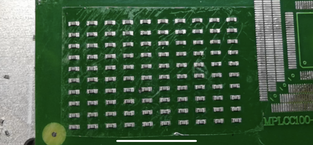

Comparison video shows the placement without optical alignment and in 2 different alignment modes

Youtube content is not displayed due to your cookie settings. Click on the functional YouTube cookies in the cookie banner to agree to load and display content from YouTube.

no alignment

alignment enabled


New 19 slot nozzle changer released working video

Youtube content is not displayed due to your cookie settings. Click on the functional YouTube cookies in the cookie banner to agree to load and display content from YouTube.

VP-2800HP-CL64-4R position accuracies below 0.02mm repeatable! #smallsmt pic.twitter.com/8YRM8rUxF3

— SMALLSMT (@SMALLSMT) May 30, 2020

GALLERY

VP2800HP-CL64-RCV 64CL Feeder plus 3 zone conveyor
VP2800HP-CL64-RCV conveyor mounting zone
VP2800HP-CL64-RCV conveyor mounting zone
VP2800HP-CL64-RCV optional dipping station
VP2800HP-CL64-RCV Z-axis sensor tip
VP2800HP-CL64-RCV Jedec tray holder
VP2800HP-CL64-RCV SMEMA connector
VP2800HP-CL64-RCV conveyor out
VP2800HP-CL64-RCV conveyor in
