Vision Placer VP-2500D-CL22 double head CL and Push feeder machine


74 active feeder lines possible in our basic entry machine!

22x CL feeder slots 8mm on North side

26x push feeder West side included!

26x push feeder East side optional!

6 slot nozzle changer included!

Small tray included



Part size from 0402 to 24x24mm possible >=0.5mm pitch standard


Moving Area:

X350mm,Y350mm,Z15mm

Size: tbd

Package: tbd

Machine Weight: tbd

Package Weight: tbd

Working Area: 300x250mm

Bottom cameras: 2x + 1x 24x24mm

Top Camera: 1x



SMALLSMT VP-2500D-CL22
VP-2500D-CL22 showing optional East feeder
SMALLSMT VP-2500D-CL22
VP-2500D-CL22 showing optional East feeder

CL Feeder slots on North side 22x 8mm


SMALLSMT VP-2500D-CL22 pick & place machine bottom camera view
VP-2500D-CL22 Bottom cameras

We use 3x bottom cameras now to improve the vision system quality.

This machine has all software options of our bigger machines.

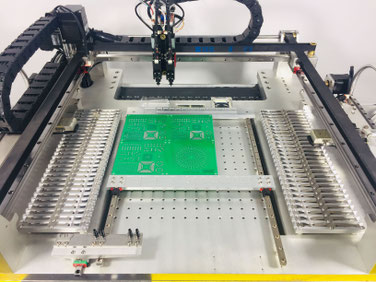

VP-2500D-CL22 pick place machine nozzle changer
VP-2500D-CL22 Nozzle changer

Our VP-2500D-CL22 machines got a nozzle changer to store 6 nozzles in the rack. Now it is possible to use 6 different nozzles in one placement job!


VP-2000S Bestückungsmaschine mit Vibrationsfeeder
VP-2000S Vibration feeder

This is the vibration feeder option for component tubes.

Up to 7x SO-8 wide tubes fit inside the feeder.

Tube tip need a cut out to pickup the part from tube.

VP-2500D-CL22-WN

VP-2500D-CL22-WN

Our VP-2500D-CL22-WN, West and North feeder installed

double head machine including

- 6 slot nozzle changer

- 22x8mm CL feeder slots on north (no CL feeder included)

- 26x 8mm push feeder West

- 3x bottom camera

- 1x top camera

- V2 VisionPlacer software

- USB video digitizer

- USB serial converter

- tool set



$6,589.00

Final price excl. shipping costs

Free shipping to the following countries: Show more Show less

  • 85 kg
  • Available
  • Ships within 3-5 weeks1
VP-2500D-CL22-WNE

VP-2500D-CL22-WNE

Our VP-2500D-CL22-WNE,West, North and East feeder installed

double head machine including:

- 6 slot nozzle changer

- 22x8mm CL feeder slots on north

- 26x 8mm push feeder West

- 26x 8mm push feeder East

- 3x bottom camera

- 1x top camera

- V2 VisionPlacer software

- USB video digitizer

- USB serial converter

- tool set



$6,875.00

Final price excl. shipping costs

Free shipping to the following countries: Show more Show less

  • 85 kg
  • Available
  • Ships within 3-5 weeks1
CN030, CP45 Nozzle
$35.00
CN065, CP45 Nozzle
$35.00
CN140, CP45 Nozzle
$37.00
CN220, CP45 Nozzle
$38.00
CN400, CP45 Nozzle
$41.00
Original Samsung CN030, CP45 Nozzle high precision
$125.00
Original Samsung CN040, CP45 Nozzle high precision
$125.00
VP-2500DP cut strip feeder block
$145.00
VP-2500D Tray feeder element
$245.00

We offer discount if you order more feeders:

>= 10 pcs 3%,

>= 25 pcs 5%,

>= 100pcs 10%

CL Feeder 12mm
$119.00
CL Feeder 16mm
$119.00
CL Feeder 24mm
$311.00
CL Feeder 32mm
$439.00
CL Feeder 8mm 2mm pitch 0201 parts
$98.00
CL Feeder 8mm 2mm pitch 0402 parts
$85.00
CL Feeder 8mm 4mm pitch
$85.00
FC120 CL Feeder Cart
From $790.00
FC160 CL Feeder Cart
From $1,010.00
