RAPTOR 8 HEAD PREMIUM INLINE HIGH SPEED PNP machine



The RAPTOR has 8 heads in a row operating independent. You can use a mix of 8 / 19 nozzles.
+ little precision improvement because no nozzle changes if using 8 heads only
+ speed improvement because of 8 heads
+ high speed HD USB3 camera [30x30mm viewing area] aligns 8 heads during fly by

+ second high resolution USB2 bottom camera [40x40mm viewing area]

+ including 3 zone conveyor including SMEMA interfaces on both sides

+ including 19 slot nozzle changer increase speed can use 8 same nozzle at a time

+ including Z-axis sensor tip for pickup height teach in

+ stainless steel nozzle seats

+ Industrial I5 PC using windows 10 included! (I5, 8Gb, 240Gb SSD, 17" TFT)

+ Vacuum pump embedded

+ New V3 controller using internal CAN bus for peripherals and head control reducing wiring and offering software updates by PC software.

+ optional dipping station unit



- size 1385x1260x1310mm, weight (600Kgs)

- does not fit through a 90cm door


Bestückungsautomat PNP machine pick & place pick and place machine
SMALLSMT RAPTOR showing standard version

SMALLSMT RAPTOR 8 head PNP machine final design
SMALLSMT RAPTOR 8 head PNP machine final design
SMALLSMT RAPTOR 8 head PNP machine final design
SMALLSMT RAPTOR 8 head PNP machine final design

SMALLSMT RAPTOR 8 HEAD PNP Machine

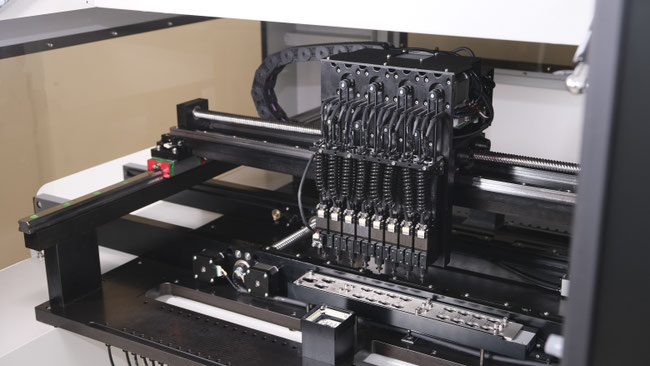

SMALLSMT Pick & Place machine Bestückungsautomat Prototypen CL Feeder
SMALLSMT RAPTOR inside

3 Zone conveyor option including pneumatic lock

The 3 zone conveyor width can get adjusted by motor.

Bestückungsautomat High Speed
SMALLSMT RAPTOR 3-Zone Conveyor
conveyor input
conveyor input
conveyor detail
conveyor detail
SMALLSMT RAPTOR 3-zone conveyor with lock
SMALLSMT RAPTOR 3-zone conveyor with lock
conveyor input parking zone
conveyor input parking zone
conveyor detail
conveyor detail

8 heads in a row

SMALLSMT RAPTOR 8 heads in a row
SMALLSMT RAPTOR 8 heads in a row

Full HD top camera USB 2.0

HD top camera
HD top camera

High Speed USB3.0 bottom camera

HS bottom camera 1
HS bottom camera 1

Full HD bottom Camera 2 USB 2.0

HS bottom camera 2
HS bottom camera 2

HD Camera examples 0201 resistor / TQFP / SOT23-5 / Connector

0201 Resistor
0201 Resistor zoomed
TQFP under differnt light
TQFP under differnt light
SOT23-5
Special connector

Datasheet

Download
DATASHEET_RAPTOR_V103.pdf
Adobe Acrobat Document 1.3 MB
Download

DRAWINGS


New CL Feeder Bank layout!

NEW! It allows to add up to 4x 16mm wide CL feeder without blocking other slots!

For 12 and 16mm feeder you need only 2 slots instead of 3 if they mounted side by side.


CL Feeder layouts

8/24/8mm
24mm removed
24mm on outer side
24mm removed
8/12/8mm
12m removed
8/12/12/8mm
12mm removed

Feeder layout example (same as VP-2800HP-CL64!)

SMALLSMT RAPTOR

SMALLSMT RAPTOR

  • 8 heads
  • 3-Zone PCB conveyor installed
  • 64x 8mm CL Feeder slots in 2 bays
  • Up to 320 x 300mm working area if 3 zones used and 300 x 600mm if full area used
  • 2x HD Bottom cameras plus 1x HD Top camera
  • Bottom camera 1 align up to 30x30mm parts high speed USB3
  • Bottom camera 2 align up to 40x40mm parts
  • 1000W + 600W AC Servo motors
  • 3x HIWIN linear guide lines on Y axis, 2x HIWIN linear guide lines on X axis
  • High precision HIWIN ball screw spindles
  • Industrial PC embedded, Windows 10, I5, TFT Monitor, keyboard, mouse
  • Vacuum pump embedded
  • Z-axis sensor tip included

Only shipping by sea possible because of 600Kgs weight!

8 head high precision VisionPlacer machine

$25,495.00

Final price excl. shipping costs

Free shipping to the following countries: Show more Show less

  • 600 kg
  • Available
  • Ships within 3-5 weeks1

We offer additional software PNP-Creator to improve project editing workflow and data storage plus reporting system.



SMALLSMT PNP-Creator software full license includi
$440.00
CN030, CP45 Nozzle
$35.00
CN065, CP45 Nozzle
$35.00
CN140, CP45 Nozzle
$37.00
CN220, CP45 Nozzle
$38.00
CN400, CP45 Nozzle
$41.00
Original Samsung CN030, CP45 Nozzle high precision
$125.00
Original Samsung CN040, CP45 Nozzle high precision
$125.00

We offer discount if you order more feeders:

>= 10 pcs 3%,

>= 25 pcs 5%,

>= 100pcs 10%

CL Feeder 12mm
$119.00
CL Feeder 16mm
$119.00
CL Feeder 24mm
$311.00
CL Feeder 32mm
$439.00
CL Feeder 8mm 2mm pitch 0201 parts
$98.00
CL Feeder 8mm 2mm pitch 0402 parts
$85.00
CL Feeder 8mm 4mm pitch
$85.00
FC120 CL Feeder Cart
From $790.00
FC160 CL Feeder Cart
From $1,010.00
