PNP-Creator BLOG

V1.04 B277 release

Final data integration finished from V2 software databases.

- Speed names fetched from V2 speed settings

- Nozzle names from V2 nozzle database

- Package informations from V2 package database

- Precision preset buttons added in feeder database

- Fast sync buttons for feeder import, feeder & SMT file export and restore of backed up feeder database in V2 software folder added

- Manual updated



V1.03 B271

We added access to V2 software package database. Please open "Settings->Machine Selection" and setup V2 software path there.

New Button appeared on all package name locations to assign data from package database.

V1.03 B267

- missing machine.ini added to setup

- X/Y coordinate checking updated in PCB settings

- SMT file import existing variants check added

- Machine settings dialog updated for VP2800HP-CL32 to VP2500HP-CL32

- need to select the right machine again to overwrite feeder base angle correction

V1.03 B263

- empty components database caused crash if first parts added and saved bug   solved

- empty feeder database caused crash if first feeder added and saved bug solved

- CSV import CRLF detection problem solved if only LF found



V1.03 B261

- components search dialog added in feeder editor

- nozzle number in feeder database dialog now from 1..19

- 2 more GERBER layers TOP and BOTTOM added

- added project depending settings for graphical mark sizes in GERBER view



V1.03 B255

- added unicode support UTF8 / UTF16 to feeder and PNP file import

- fixed feeder export problems

- fixed feeder rotation angle problems

Please delete files in "DatabaseFiles" folder need to recreate during feeder file import if V1.03 previously used.



V1.03 release

- Window sizes now saved global in app settings

- component database and feeder database dialog save on close improved



V1.03a beta

- Component stock storage increased.



V1.03 1st beta

Bugs removed:

- scaling not applied to SMT files only to CSV fixed

- TOP and BOT layer parts not separated well if double PNP file import used (EAGLE)



New features:

- Component database added

- Feeder database added

- New Feeder browser added showing feeders assigend in project and warning if

- Flexible feeder assignment added

- Feeder assignment logic added

- Feeder export to V2 software added

- Warning feeder part value not equal to PNP list part value

- Copy and rename feeder groups

- Sorting on all column headers added

- Feeder export finished

- Mouse over information in gerber view, feeder browser, part list

- Feeder browser and PNP list are docking windows



V1.02

- New THT report flag added to support hand placed parts. Selection allows to add filter for only SMT or THT parts.

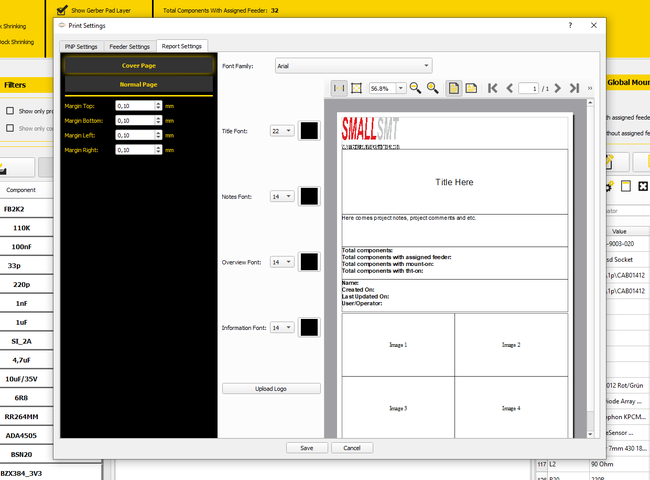

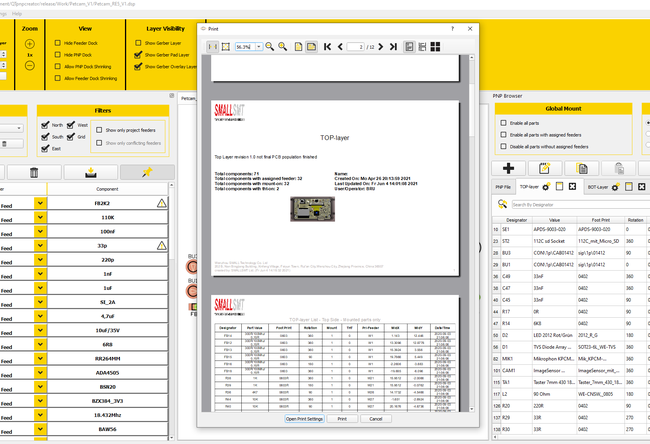

- New THT report added to print menu.

- CSV PNP data import has ";" separator option added.

- Reports use report type name in headline now.



Updated on 02.11.2020 print dialog problems solved!

If you update existing installation please delete platforms folder first!



V1.01

- Updates vision flags in SMT export now correctly. You need to re assign feeder again to take changes effect.

- Delete on multiple selected rows now added

Dangerous Prototypes

AVR Freaks

Element 14

EEVBLOG

IMDES


VP-2500D-CL22-WN
$6,589.00
Tweets by SMALLSMT
Follow @TwitterDev
SMT Bestückungsmaschine

PNP-Creator V1.03 B267 released!

Tue 16 Feb 2021

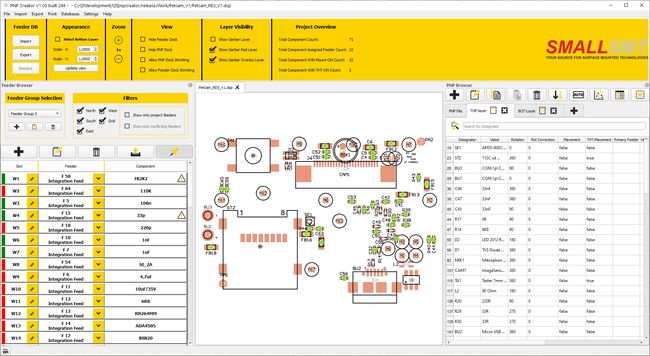

Our new PNP-Creator job preparation softare is a real WSWYG editor to setup all parameters during job preparation.
