SMALLSMT Pecker PREMIUM LINE R Bestückungsautomat



Der Pecker-Bestückungsautomat hat 4 Köpfe in einer Reihe. Sie können eine Setup aus 4 / 19 Düsen verwenden.
+ Geschwindigkeitssteigerung durch 4 Köpfe die gleiche Nozzles verwenden
+ Hochgeschwindigkeits-HD-USB3-Kamera richtet die 4 Köpfe im Vorbeiflug aus
+ Größe und Gewicht sind Büro freundlich passt durch eine 90cm  Tür!
+ Z-Achse Höhensensor enthalten zur Einmessung der Pick Up Position
+ 19-facher Düsenwechsler erhöht die Geschwindigkeit, 4 gleiche Düsen können gleichzeitig verwenden
+ optionaler Dosierkopf für Kleber und Paste
+ optionale Dipping Station für Fluxmittel
+ 32mm Z-Achsen-Verfahrbereich
+ modulare Bauweise mit einfachem Zugang zu den zu wartenden Komponenten
+ Intelligente CL-Feeder Bay mit seriellem Anschluss und Druckluftzufuhr nur Ventile und Schläuche außerhalb der Maschine!
+ Düsensitze aus Edelstahl geringer Verschleiß
+ Intelligenter Bestückungskopf mit Embedded Controller und CAN Bus für reduzierte Verkabelung
+ Eingebetteter Windows 10 Industrie PC I5 CPU
+ Neuer V3-Controller für bessere Leistung und 0,01mm Auflösung




Bestückungsautomat PNP machine pick & place pick and place machine
SMALLSMT PECKER showing standard version including push feeder

Standard-Maschine mit Düsenwechsler

SMALLSMT Pick & Place machine Bestückungsautomat Prototypen CL Feeder
SMALLSMT PECKER including nozzle changer
SMALLSMT Pecker on SMTCONNECT 2022
SMALLSMT Pecker on SMTCONNECT 2022

Neues Maschinenelektronikdesign mit integriertem PNP-Kopf-Controller und CAN-Bus-Kommunikation.


Jedec tray holder left side
closed door operation
SMALLSMT Pecker Push feeder
SMALLSMT Pecker front
SMALLSMT Pecker  side
SMALLSMT Pecker  top
SMALLSMT Pecker top2
SMALLSMT Pecker side2
SMALLSMT Pecker  top3
SMALLSMT Pecker production 1
SMALLSMT Pecker  production 2
SMALLSMT Pecker production 3
SMALLSMT Z-Axis-Sensor
SMALLSMT Z-Axis-Sensor

Die neue Z-Achsen-Höhensensor ist in allen 4-Kopf-Maschinen enthalten.

4 heads in a row (4R)

VP-2800HP-CL64-4R new 4 heads in a row [optional conveyor!]
VP-2800HP-CL64-4R new 4 heads in a row [optional conveyor!]

Full HD top camera USB 2.0

VP-2800HP-CL64-4R HD top camera
VP-2800HP-CL64-4R HD top camera

High Speed USB3.0 bottom camera

SMALLSMT PECKER   HS bottom camera 1
SMALLSMT PECKER HS bottom camera 1

Full HD bottom Camera 2 USB 2.0

SMALLSMT PECKER  bottom camera 1
SMALLSMT PECKER bottom camera 1

HD Camera examples 0201 resistor / TQFP / SOT23-5 / Connector

0201 Resistor
0201 Resistor zoomed
TQFP under differnt light
TQFP under differnt light
SOT23-5
Special connector

JEDEC Tray holder

SMALLSMT PECKER   Jedec Tray holder
SMALLSMT PECKER Jedec Tray holder
optional strip feeder
optional strip feeder
SMALLSMT PECKER   feeder bank
SMALLSMT PECKER feeder bank

Working area

SMALLSMT PECKER  standard working area
SMALLSMT PECKER standard working area
SMALLSMT PECKER up to 3 vibation feeder units
SMALLSMT PECKER up to 3 vibation feeder units
SMALLSMT PECKER  CL-feeder controller
SMALLSMT PECKER CL-feeder controller

SMALLSMT PECKER  19 slot nozzle changer
SMALLSMT PECKER 19 slot nozzle changer
VP-2800HP-CL6X dispenser unit
VP-2800HP-CL6X dispenser unit

SMALLSMT PECKER  working area layout showing 19 slot nozzle changer option
SMALLSMT PECKER working area layout showing 19 slot nozzle changer option

Datenblatt

Bestückungsautomat PNP machine
SMALLSMT PECKER product parameters
SMALLSMT PECKER  camera specification
SMALLSMT PECKER camera specification
Download
DATASHEET_Pecker_V102.pdf
Adobe Acrobat Document 636.3 KB
Download

DRAWINGS


CL Feeder Bank layout

Er ermöglicht den Einbau von bis zu 4x 24mm breiten CL Feeder, ohne andere Steckplätze zu blockieren!

Für 12- und 16-mm-Feeder werden nur 2 statt 3 Plätze benötigt, wenn sie nebeneinander montiert werden.


CL Feeder layouts

8/24/8mm
24mm removed
24mm on outer side
24mm removed
8/12/8mm
12m removed
8/12/12/8mm
12mm removed

Feeder Layout Beispiel

SMALLSMT PECKER

SMALLSMT PECKER

  • 4 heads
  • 19 slot nozzle changer included
  • Optional dispenser head
  • Optional dipping station
  • Optional Vibration feeder
  • 64x 8mm CL Feeder slots in 2 bays
  • 35x 8mm Push feeder on website included
  • Optional up to 4 vibration feeder modules
  • Up to 600 x 450mm working area
  • 2x Jedec Tray holder on both sides plus 350x300mm PCB holder
  • Z axis sensor included
  • 2x HD Bottom cameras plus 1x HD Top camera
  • Bottom camera 1 align up to 30x30mm parts high speed USB3
  • Bottom camera 2 align up to 40x40mm parts
  • 1000W + 400W AC Servo motors
  • 3x HIWIN linear guide lines on Y axis
  • High precision HIWIN ball screw spindles
  • Integrated I5 Windows 10 industrial PC
  • 17" TFT Monitor, Keyboard, Mouse
4 head high precision VisionPlacer machine including PC

$22,250.00

Final price excl. shipping costs

Free shipping to the following countries: Show more Show less

  • 185 kg
  • Available
  • Ships within 3-5 weeks1

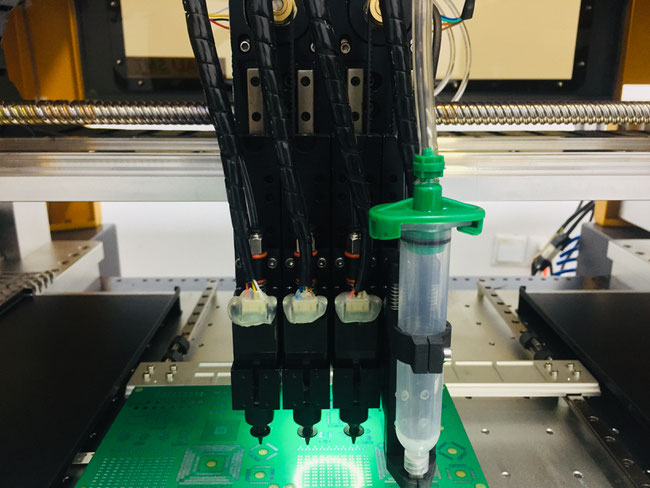

Dispenser option now possible for 4 head machines too!
