We offer our new SMT VISOR System for PCB inspection

This microscope system offer brilliant image quality without latency on HDMI output.

It has fast zoom and offer wide range automatic image adjustment.

The depth of field is perfect thanks to the built-in HDR function.

PCB repair jobs and SMT inspection has never been easier.

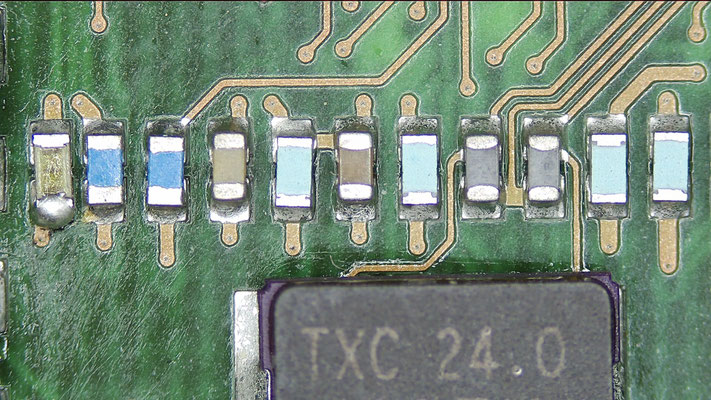

Take a look for the WS2812 LED photo in the gallery!

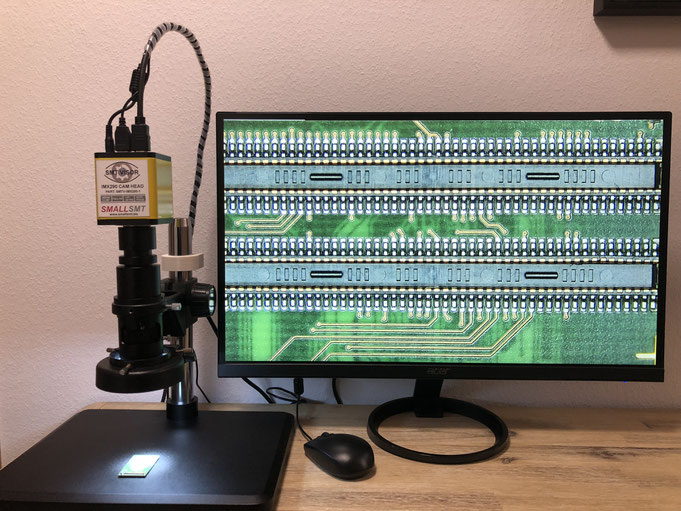

SMALLSMT SMT VISOR PCB Inspection system
STMTV-IMX290-1 Camera Head

CAMERA UI

GALLERY

TECHNICAL DATA

Lens: 16X-160X Adjustable Magnification 25mm Zoom C-mount Lens 0.7X~5X, working distance 105mm

Camera:  IMX290 Sony 2,2MP Camera chip, wide range automatic zoom, HDR,

            BSI high light sensitive sensor

Pixel size : 1/2.8"

Lens interface : C / CS type

Exposure : automatic and manual

Display frame rate : 60Hz at 1080P

Shutter Speed : 1/50s(1/60s)～1/10000s



Download
DATASHEET_SMT_VISOR_SMTV-IMX290-1.pdf
Adobe Acrobat Document 666.2 KB
Download
Download
SMTV_Manual.pdf
Adobe Acrobat Document 2.9 MB
Download

You can buy a HDMI to USB Video grabber to digitize the camera output. This cheap device found on AMAZON.

https://www.amazon.de/dp/B07FTLBRSG/ref=psdc_1626220031_t2_B07BGXVGLS

This one has HDMI pass through so Monitor can keep connected during capture.

https://www.ebay.de/i/153275237693?chn=ps

SMTV-IMX290-1 PCB Inspection System

SMTV-IMX290-1 PCB Inspection System

Camera Head IMX290, Microscope zoom lens, Stand, Mouse, HDMI cable, standard LED ring light, Power supply

Camera Head IMX290, Microscope zoom lens, Stand, Mouse, HDMI cable, Power supply

$985.00

Final price excl. shipping costs

Free shipping to the following countries: Show more Show less

  • 6 kg
  • Available
  • Ships within 3-7 days1
