Vision Placer VP-2000D , VP-2500D and VP-2800D pick and place machine introduction


SMALLSMT, pick & place machine, SMT Bestückungsmaschine, DIY pick and place, SMT pick & place machine, desktop pnp machine,smd bestückungsautomat,smd bestückungsmaschine,desktop smt machine

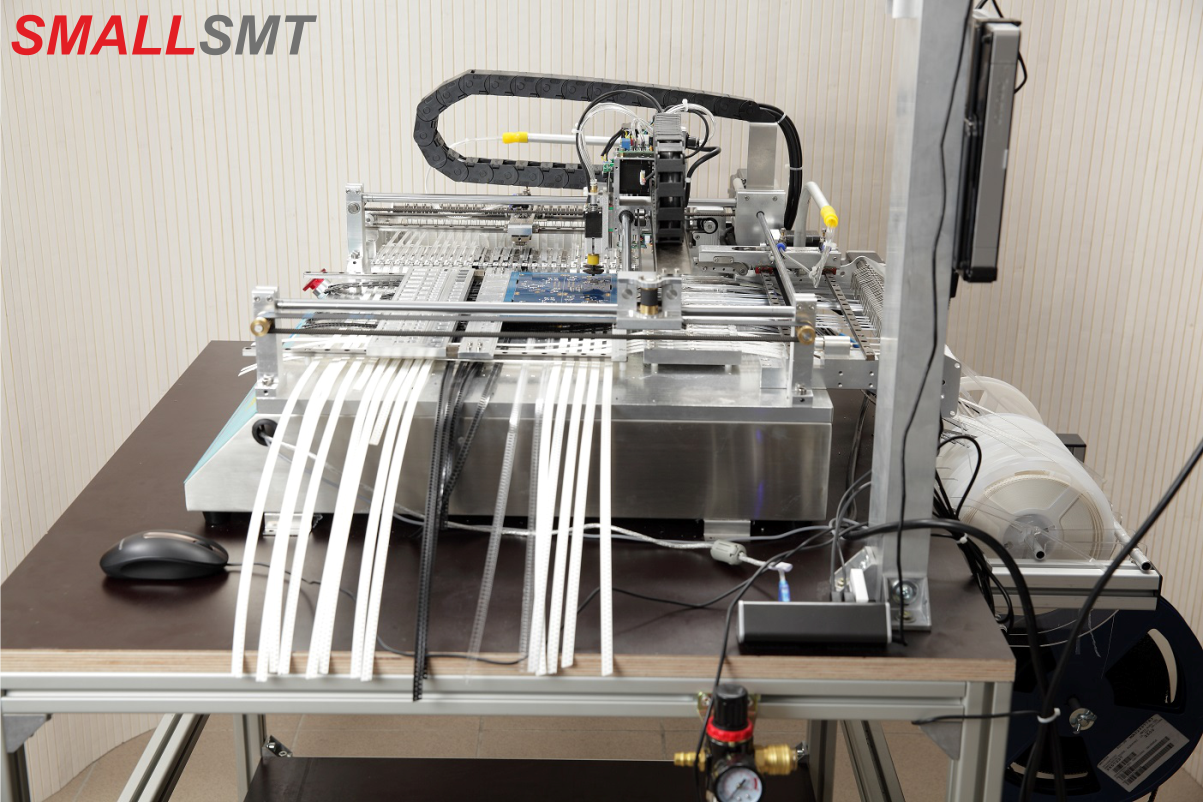

SMALLSMT VP-2500D pnp machine

SMD Bestückungsautomat SMT Bestückungsmaschine autosmt desktop pick place
VP-2500D pick and place machine placing 0402 resistors

Placement speed under full vision placing mixed parts!



<= 2000 parts / hour at mid speed using full vision single head

<= 3600 parts / hour at mid speed using double head operation

>   4000 parts / hour at high speed needs fine tuning

Pneumatic push feeder to improve reliability and speed!

Instead of drag feeder we use pneumatic push feeder.

The head can't loose position on feeder problems if tape stuck.

You receive support from Germany!


We offer 2 types of machine VP-2X00D and VP-2X00HP


VP-2X00D Belt machine X / Y axis stepper motor, 2 sides feeder, 3 cameras, 2 heads, Vision Placer software

  • VP-2000D
  • VP-2500D
  • VP-2800D ( 3 side feeder optional!)

VP-2X00HP Spindle machine X / Y axis servo motor, linear guidings, 3 side feeders, 3 cameras, 2 heads, Vision Placer software

  • VP-2500HP
  • VP-2800HP


Flexible solution


You need a short time solution for your PCB assembly?

No problem with our pnp machines VP-2000D and VP-2500D you can complete your prototyping job in a very short cycle!

Fast Prototyping


No more boring manual SMD place jobs taking hours to complete!

Easy to reproduce your prototypes.

High placement quality and possibly no wrong parts in placement.

And finally no long time waiting for external manufacturers.

Best value for the price


Vision Placer pick & place machines will pay off quickly because you save a lot of time and external manufacturing costs!


High performance and flexible head concept


SMALLSMT, pick & place machine, SMT Bestückungsmaschine, DIY pick and place, SMT pick & place machine, desktop pnp machine,smd bestückungsautomat,smd bestückungsmaschine,desktop smt machine
VP-2000D Dual placement head

The uses of two pick and place heads give you the choice to select between 3 placement strategies:

  1. Single head placement using two different nozzles mostly no nozzle change necessary.
  2. Double head placement using same nozzles is used to increase the placement speed you take 2 parts and place.
  3. Double head placement using different nozzles the software optimizes the access cycles and try to pick two different parts together.

Nozzle changer for more flexibility


PNP machine with nozzle changer option
Nozzle changer

Our new 2016 V2 controller system now supports our optional nozzle changer cart.

You receive more flexibilty and can use up to 5 different nozzles in one placement job!

No hidden costs for feeder systems


SMALLSMT, pick & place machine, SMT Bestückungsmaschine, DIY pick and place, SMT pick & place machine, desktop pnp machine,smd bestückungsautomat,smd bestückungsmaschine,desktop smt machine

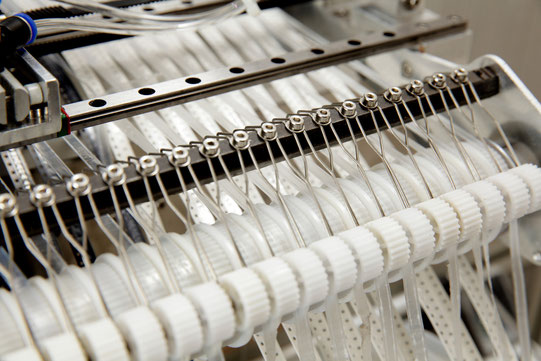

VP-2X00D Push feeder

You receive a fully working system no need to buy feeder by feeder.

We reduced the number of mechanical parts so it's easy maintainable and have less spare part costs!



The pneumatic push feeder on West, East and North side pushes the tapes in advance before the nozzle picks the part.

It is highly adjustable you can set the force by changing the applied air pressure, adjust the damper system and regulate the air flowrate in the pneumatic cylinders.



SMALLSMT, pick & place machine, SMT Bestückungsmaschine, DIY pick and place, SMT pick & place machine, desktop pnp machine,smd bestückungsautomat,smd bestückungsmaschine,desktop smt machine

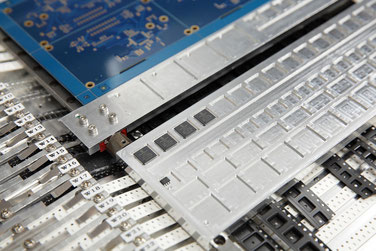

VP-2500D Tray feeder Addon

We have a small tray feeder integrated in PCB holder and optional tray feeder to add in the working area.

All pick up positions are software defined and you can add unlimited number of software feeders.

SMALLSMT, pick & place machine, SMT Bestückungsmaschine, DIY pick and place, SMT pick & place machine, desktop pnp machine,smd bestückungsautomat,smd bestückungsmaschine,desktop smt machine
VP-2500D small tray feeder (standard)

Integrated "little" tray feeder in pcb holder tray.

You need to take care of the different positions because of various PCB sizes.

Pick and Place machine feeder peel of tape autosmt SMD Bestückungsautomat SMD Bestückungsmaschine

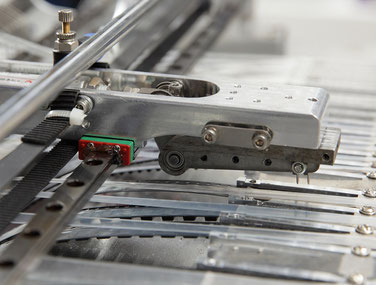

VP-2x00D tape peel of mechanic

Compatible and functional


SMALLSMT, pick & place machine, SMT Bestückungsmaschine, DIY pick and place, SMT pick & place machine, desktop pnp machine,smd bestückungsautomat,smd bestückungsmaschine,desktop smt machine

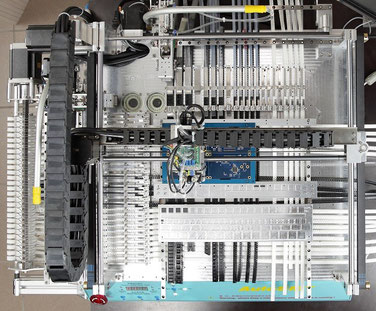

CP-2500D Feeder top view

Our Vision placer pnp machine can process SMD components from standard reels, cut tapes, and trays.

The software can define pick up points, lines and grids at any place inside the working area.

Custom feeders and external vibration feeder can be easy integrated

Precise and fast placement


SMALLSMT, pick & place machine, SMT Bestückungsmaschine, DIY pick and place, SMT pick & place machine, desktop pnp machine,smd bestückungsautomat,smd bestückungsmaschine,desktop smt machine

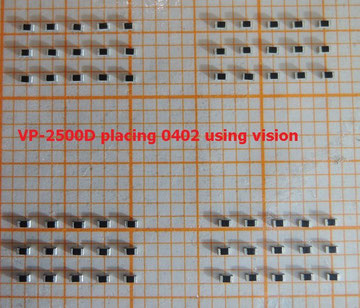

VP-2500D 0402 placement test

 Because of it's fast vision alignment system it is possible to align every part even resistors and capacitors and receive 2000 components per hour placement speed.

Two alignment strategies are available:

  • Offset alignment including angle correction
  • Only offset alignment for chips

The vision system is adjustable for speed or precision in several steps and you can set the repeat step count.



Good investment for the future


SMALLSMT, pick & place machine, SMT Bestückungsmaschine, DIY pick and place, SMT pick & place machine, desktop pnp machine,smd bestückungsautomat,smd bestückungsmaschine,desktop smt machine

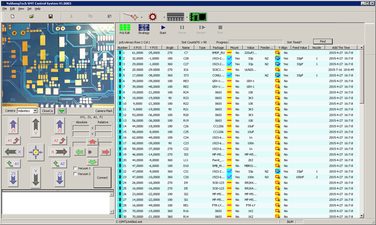

SMALLSMT Vision Placer Software

 We provide software updates for our PC based Vision Placer software free of charge.

You will receive improvements and additional functions when available.

Our current software is working on Windows 7 up to Windows 10.

You need an I3 PC having 4Gb RAM to run the software.

The UI language is English and Chinese.



Pick and place data can be imported in the following formats:

  • Altium Designer
  • Protel 99SE
  • Power PCB
  • Allegro
  • Cadsoft Eagle Partlist  www.cadsoft.de
  • KiCAD  http://kicad-pcb.org/

Various placement strategies


SMALLSMT, pick & place machine, SMT Bestückungsmaschine, DIY pick and place, SMT pick & place machine, desktop pnp machine,smd bestückungsautomat,smd bestückungsmaschine,desktop smt machine

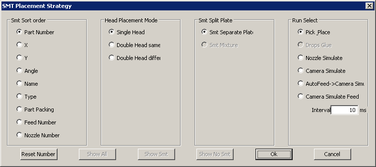

SMALLSMT Vision Placer Software Placement Strategies

You have options to select various placement strategies.

Select the mounting mode and to run different simulations:

  • Nozzle simulate
  • Camera simulate
  • combined modes operating the feeder too
  • different sorting options

VP-2500HP High Precision Pick and Place machine

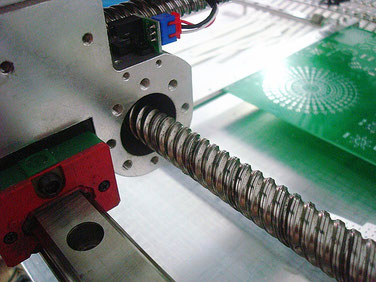

High precision servo Pick and place machine VP-2500HP
VP-2500HP High Precision Upgrade

We offer a VP-2500HP / VP-2800HP machine having spindle instead of belts and servo drives for X and Y axis.

The guidings are improved to!

This will increase the accuracy to place 0.35mm pitch parts and higher precision over long time use. (no belt change required!)

HP machines need more space for the mechanics so West feeder reduced by 3 lines!











The maximum configuration for a VP-2500HP is

24 x 8mm West feeder

24 x 8mm East feeder

2 x 24mm, 5 x 16mm and 6 x 12mm North feeder.

So we have 61 Feeder on VP-2500HP machine in this configuration!



The maximum configuration for a VP-2800HP is

34 x 8mm West feeder

34 x 8mm East feeder

2 x 24mm, 5 x 16mm and 6 x 12mm North feeder.

So we have 81 Feeder on VP-2800HP machine in this configuration!



VP-2000D vs VP-2500D vs VP-2800D vs HP machines comparison


We show only the differences! VP-2000D shop link   VP-2500D shop link VP-2800D shop link
Workspace Area
 240 x 270mm    360 x 320mm 360x500mm
West Feeder (standard) 21 x 8mm

26 x 8mm

24 x 8mm HP machine

37 x 8mm

34 x 8mm HP machine

North Feeder (optional can be customized) 15 x 8mm   25 x 8mm 25x 8mm
Weight 45Kg   55Kg / 70Kg HP 60Kg / 75Kg HP
Z Axis travel limit / maximal Component Height 12mm / 10mm VP-2X00D, 15mm / 12mm VP-2X00HP
Position accuracy / Resolution +/- 0.025mm ( 0.001")
Vision System 3 Cameras , 1x Top, 2x Bottom Cameras
Vision Alignment Limits

Parts from 0402 to 20 x 20mm,

>= 0.5mm Pitch  >= 0.35mm Pitch for HP machines

Fiducial / Mark recognition

>= 1mm round or square pad offset and angle correction

Visual Alignment modes XYA = offset + angle, XY = offset correction only
 X / Y Motors High torque stepper SAMSR  /  HP machine has servo drives
Nozzle Type

Samsung CP45, snap in holder easy changeable by hand

Vacuum generation inside needs

Compressed air 6 Bar 110L/min oil free!

Controller System

PC based Vision System and local 32 Bit Machine Controller System,

modular stepper driver, 480W switched power supply 110 / 230V (50 to 60Hz)

Mechanical guiding's for X / Y axis

round 2x 12mm X-Axis, 2x 10mm Y-Axis / HP machine has linear guides

 Placement speed

<= 2000 parts / hour at mid speed using full vision single head

<= 3600 parts / hour at mid speed using double head operation

>   4000 parts / hour at high speed needs fine tuning

North feeder setup examples


  VP-2000D
VP-2500D / VP-2800D / VP-2500HP / VP-2800HP
standard 1 1x 24mm     2x 16mm      6x 12mm       5x 8mm  2x 24mm     3x 16mm      6x 12mm       7x 8mm
standard 2 16x 8mm 25x 8mm
custom 1 2x 16mm             4x 12mm             7x 8mm

1x 16mm             4x 12mm             18x 8mm

custom 2 1x 24mm     2x 16mm      5x 12mm       4x 8mm

1x 16mm             5x12mm              16x 8mm

custom 3

4x 16mm             4x 12mm             13x 8mm


    recommend configuration
