VP-2500DP-CL32 SMT mounter using 32 CL feeder and 33 push feeder


  • new linear guides on all axis, no head shaking like competitor machines using small belts and simple round rods
  • new winder mechanics on our integrated push feeders
  • new 3 side feeder system
  • new bottom camera position changed both cameras reachable for both heads
  • new mounting options inside the working area
  • new stronger motors and belts used including closed loop driver system for X and Y axis
  • new small tray feeder included on north and south side of PCB holder
  • 2 side CL feeder support
  • 2 side vibration feeder support up to 14 SO-8 tubes now possible!

This new machine is based on the same stable VP-2500DP machine design



Working Area: 300x350

Nozzle Changer: 6 slot included!



West Feeder: 16x8mm CL Feeder slots

North Feeder: 33x8mm push Feeder (customization possible)

 (6x12mm + 23x8mm possible)

East Feeder: 16x8mm CL Feeder slots



West Vibration Feeder: up to 7x SO-8 tubes

East Vibration Feeder: up to 7x SO-8 tubes



Machine Dimensions: 972x972x560mm



Totally 33+16+16+7+7 = 79 automatic feeders plus strip feeder and tray feeder totally!



Download
DATASHEET_VP2500DPCL32.pdf
Adobe Acrobat Document 126.3 KB
Download
pick and place machine Bestückungsautomat Bestückungsmaschine pick & place machine CL Feeder
VP-2500DP-CL32 front

A pick and place machine need feeder lines to supply the components for the placement process.

Our machines have up to 32 CL feeder and up to 33 push feeders on the machine table.

The feeder stock is Yamaha CL feeder compatible

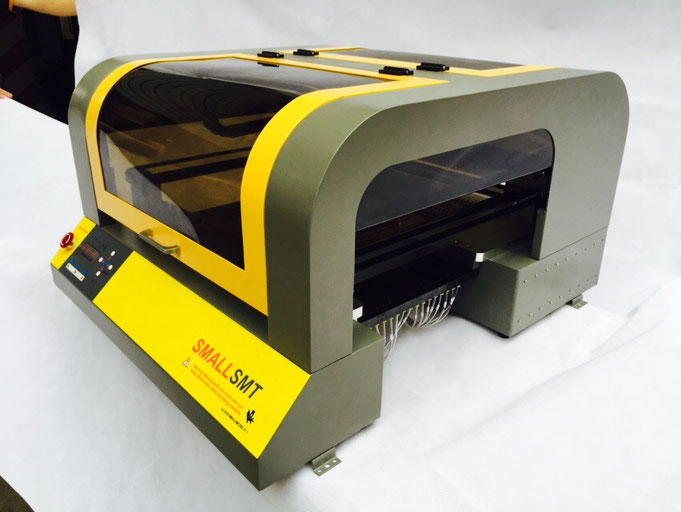

desktop pick and place machine LED mounter Yamaha CL feeder
VP-2500DP-CL32 CL feeder bay
nozzle changer automatic pick and place desktop machine
VP-2500DP-CL32 mounter working area

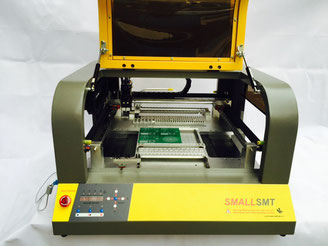

SMALLSMT VP-2500DP pick & place machine bottom camera view
VP-2500DP-CL32 cover open

We use new bottom cameras now to improve the vision system quality. Both bottom cameras are now usable for both heads.

X and Y axis motors changed using stronger versions to rise the pick and place speed.

Y axis motor is now a closed loop servo stepper motor. The PCB holder on north side has small tray feeder now too.

VP-2500DP-CL32 push feeder on the back side included
VP-2500DP-CL32 push feeder on the back side included
Vision Placer VP-2500DP-CL32

Vision Placer VP-2500DP-CL32

VP-2500DP-CL32 without feeder cassettes

32x Yamaha CL Feeder support. (8mm feeder width)

up to 33x 8mm push feeder North included



Nozzle changer 6 slot included!

8.950,00 €

Final price excl. shipping costs

Free shipping to the following countries: Show more Show less

  • 140 kg
  • Available
  • Ships within 3-5 weeks1
DISPENSER INFORMATION

We offer additional software PNP-Creator to improve project editing workflow and data storage plus reporting system.

Dot-Maker is used to create dot patterns based on GERBER data for paste coverage and glue dispensing. The final coordinate file get imported in V2 software to execute.



SMALLSMT PNP-Creator software full license includi
440,00 €
V2 Dot Maker Software
350,00 €

We offer discount if you order more feeders:

>= 10 pcs 3%,

>= 25 pcs 5%,

>= 100pcs 10%

CL Feeder 12mm
119,00 €
CL Feeder 16mm
119,00 €
CL Feeder 24mm
311,00 €
CL Feeder 32mm
439,00 €
CL Feeder 8mm 2mm pitch 0201 parts
98,00 €
CL Feeder 8mm 2mm pitch 0402 parts
85,00 €
CL Feeder 8mm 4mm pitch
85,00 €
FC120 CL Feeder Cart
From 790,00 €
FC160 CL Feeder Cart
From 1.010,00 €
VP-2500DP cut strip feeder block
145,00 €
Vibration feeder option
385,00 €
VP-2500D Tray feeder element
245,00 €
